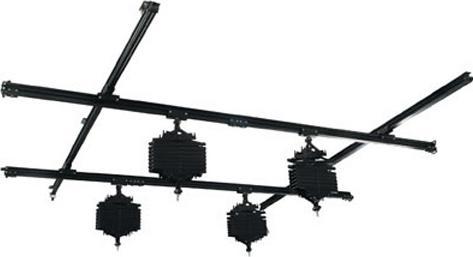

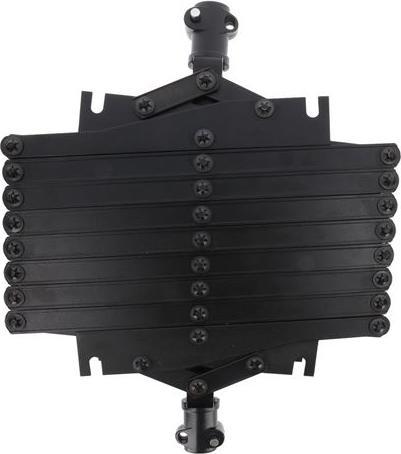

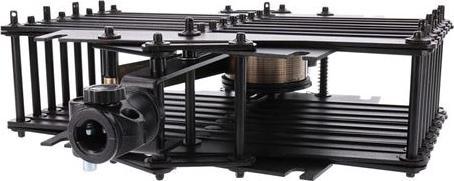

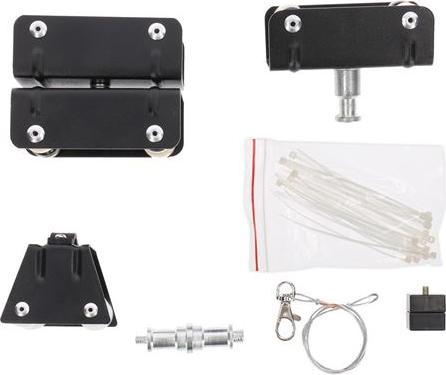

Complete ceiling track system with four pantographs. Ideal solution for your photo studio. With this system, you can position your studio flashes at the desired height without the help of tripods. Rollers run on the lower crossbar so that it can be easily moved forwards and backwards. The pantographs can be moved to the left and right. The spring system allows you to position the studio flashes at any desired height. The pantographs are connected using a universal spigot adapter. The studio flashes are also attached using a spigot adapter. All studio flashes with a pin connection fit onto the adapter. If your studio flash does not fit, you will find spigot adapters in various sizes in Falcon Eye's range. The pantograph can be loaded with a maximum of 6.5 kg. You must attach a flash or other lamp weighing more than 1 kg to the spigot for it to function optimally. This prevents the pantograph from accidentally moving upwards. 600 grams is the absolute minimum per spigot/pantograph.

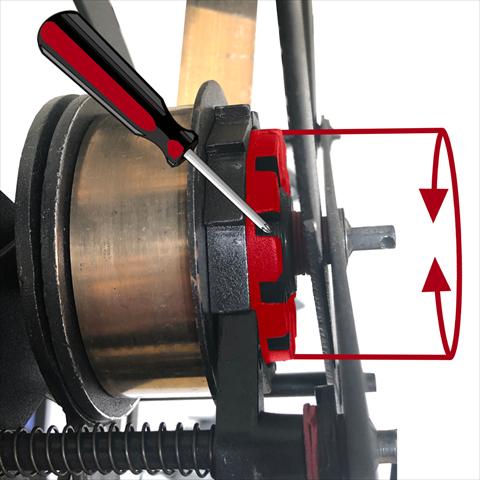

If you have a studio flash with a low weight, you can adjust the carrying weight of the pantograph by adjusting the adjustment ring with a screwdriver.

The system can be extended up to a maximum of 3x6 metres.

Weight specifications:

The 4 pantographs together weigh 24 kg (6 kg each).

The maximum load capacity per pantograph is 6.5 kg.
