Product Dimensions:
Rack: Width x Depth x Height (mm): 600 x 450 x 817
Double wall mount section: Width x Depth x Height (mm): 600 x 150 x 809

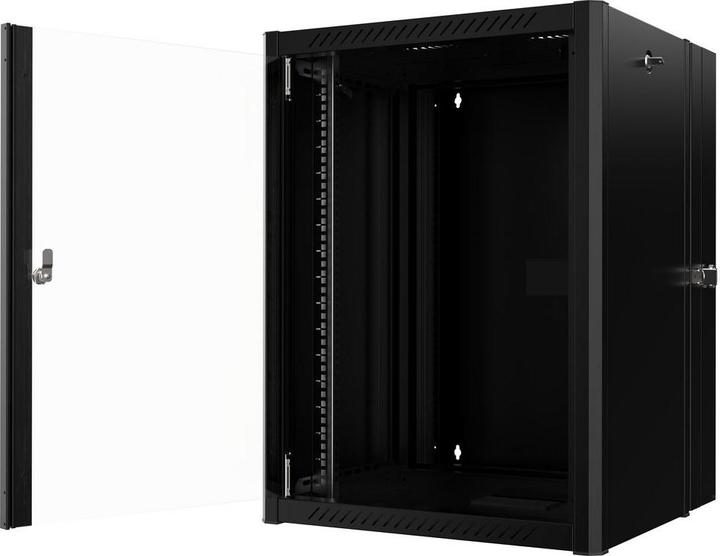

Colored strips located at the sides of the 4mm antistatic tempered smoothed glass door, which has an extruded aluminum frame and high fracture resistance, present a decorative view. The double wall mounted back section allows for the installation of additional 19" compatible equipment, making it ideal for housing cable harnesses, patch panels, and other equipment. With the cable inlet hole in the back, it is perfect for feeding cables through. Equipment conforming to 19" installation and with a depth of 70mm may be attached inside the double wall mounting section.

By attaching a ventilation module with a maximum of 2 fans (optional) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved. If no fan module is attached, these ventilation holes enable air circulation inside the cabinet and the discharge of hot air through passive ventilation.

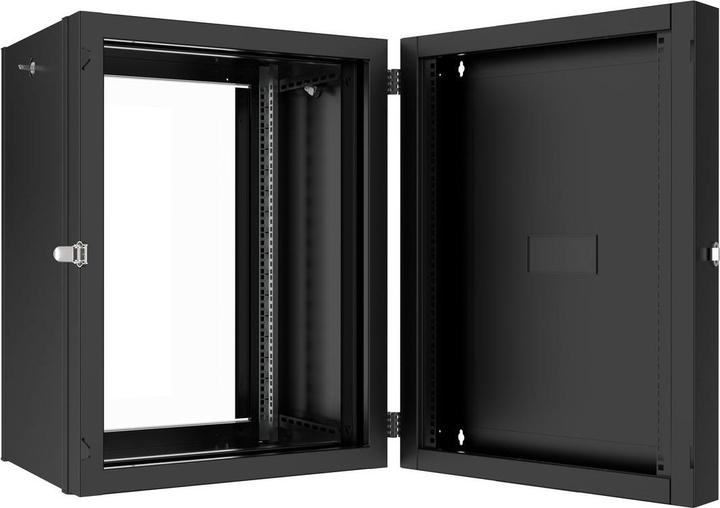

Since the side panels are detachable, access to the cabinet is ensured from both the front and sides in wall mounting applications and from all sides in free-standing applications. The standard cabinet is delivered with 1 set of 2 device installation rails mounted. The device installation rails allow for depth adjustments of the devices to be installed in the cabinet.

With 145mm x 70mm cable inlet holes at the upper, lower, and rear door of the cabinet, it provides cable inlet from three directions, facilitating installation. Thanks to the rubber-edged cable entry module, which is movable for 0-50mm and features a sliding compression system, incoming cables are compressed safely while minimizing dust ingress. This item number consists of two parts: RWP12U45BL + RWMD12UBL.
