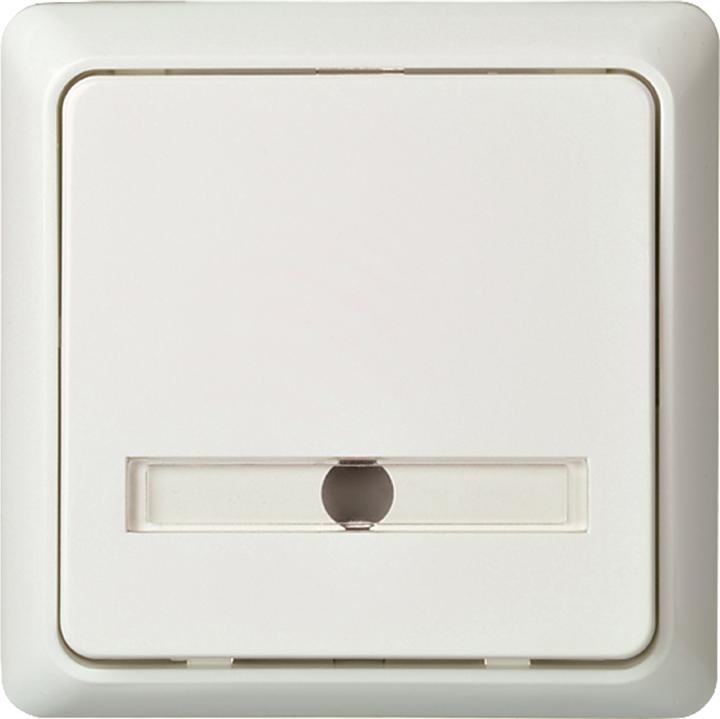

Elso push-button surface-mounted illuminated 506334

Manufacturer: Elso
Designation: Push-button surface-mounted illuminated with text field
Type: 506334
Composition: Basic element with complete housing
Version: Single push-button
Operating mode: Push-button
Number of actuating rockers: 1
Number of modules: 2
Number of poles: 1
Rated voltage: 42 V
Rated current: 1 A
With illumination: Yes
With signalling lamp: No
Feedback contact: No
Mounting type: Surface-mounted
Mounting type: Screw fixing
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
Text field/labelling area: Yes
Imprint: None
Suitable for degree of protection (IP): IP20
Device width: 80 mm
Device height: 80 mm
Device depth: 23 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Elso push-button surface-mounted illuminated 506334: more details
Push-button rated at 42 V and 1 A
Complete devices with frame and rocker.
Push-button with illuminated labelling field
Operating voltage 12 V - 24 V.
Legend strips with bell symbols.
Light.
Key and neutral enclosed.
Cannot be used for remote switch dimmers and electronic remote switch relays except 517770.
Current consumption of the LED at 12 V approximately 2 mA; at 24 V approximately 5 mA.
Surface-mounted. Flat.
Colour: Pearl white
Screwless terminal connection for solid and stranded conductors up to 0.8 mm diameter.
EAN: 4013984104189.
