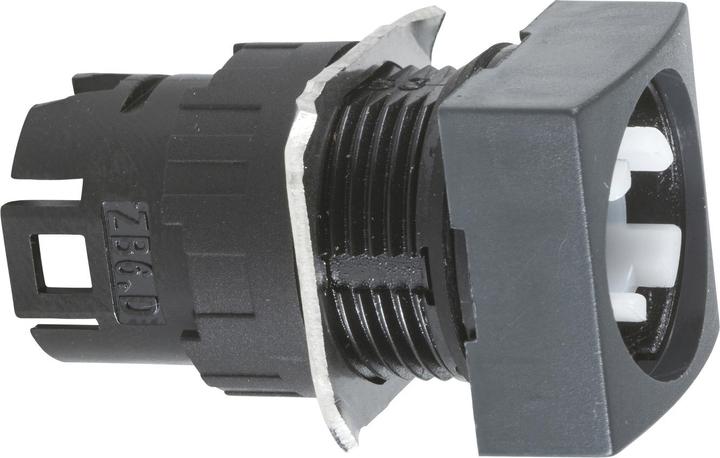

Schneider Electric Selector Switch, Rectangular ZB6CD08

Manufacturer: Schneider Electric
Description: Selector Switch, Rectangular
Type: ZB6CD08
Number of Switching Positions: 2
Actuator Element Design: Other
Suitable for Lighting: Yes
Color of Actuator Element: Black
Lens Shape: Square
Hole Diameter: 16.2 mm
Opening Width: 0 mm
Opening Height: 0 mm
Switching Function Latching: Yes
Push Button: No
With Front Ring: Yes
Material of Front Ring: Plastic
Color of Front Ring: Black
Protection Class (IP), Front Side: IP65
Protection Class (NEMA): Other

Additional Details: Front element for Harmony ZB6 selector switch. Plastic bezel. 2 positions at 90°. Dimensions (WxH) 18x18 mm, mounting diameter 16 mm, weight 0.016 kg. Square head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with a 16 mm installation dimension combines easy installation with great flexibility while requiring minimal space. Certifications according to CSA, CCC, GOST, UL. Product standards according to EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, JIS C 852, JIS C 4520, EN/IEC 60947-5-5.
