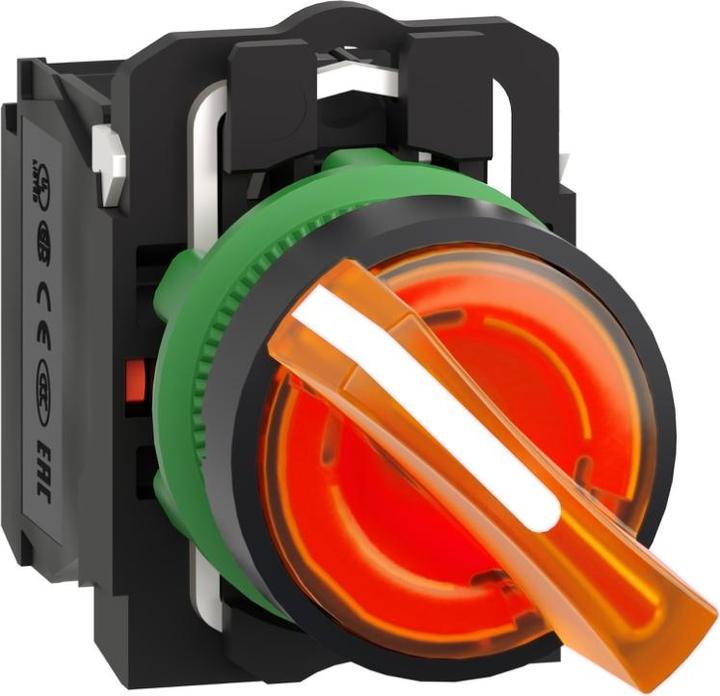

Schneider Electric Illuminated Selector Switch XB5AK125B5

Manufacturer: Schneider Electric
Description: Illuminated selector switch 2 positions, 24V, 1NO + 1NC
Type: XB5AK125B5
Number of switching positions: 2
Actuation element design: short rotary handle
Suitable for lighting: yes
With light source: yes
Button color: orange
Hole diameter: 22.5 mm
Switching function latching: yes
Momentary: no
Protection class (IP): IP66
Protection class (NEMA): 13
Supply voltage: 24 V
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Electrical connection design: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black

Schneider Electric Illuminated Selector Switch XB5AK125B5: additional details
The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30mm installation dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated selector switch in orange includes a universal LED and requires a supply voltage of 24V ACDC. The switch features 2 positions as well as 1 normally open and 1 normally closed contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
