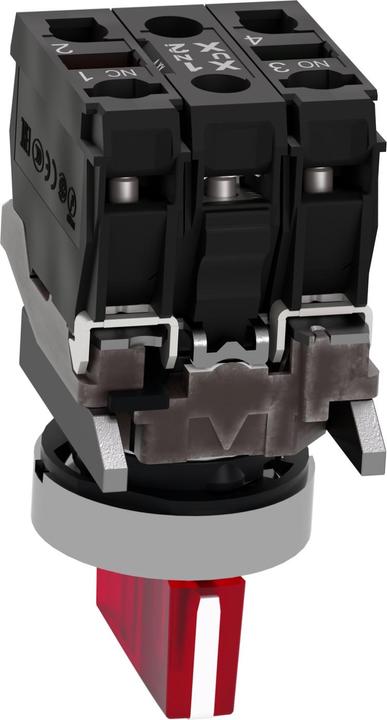

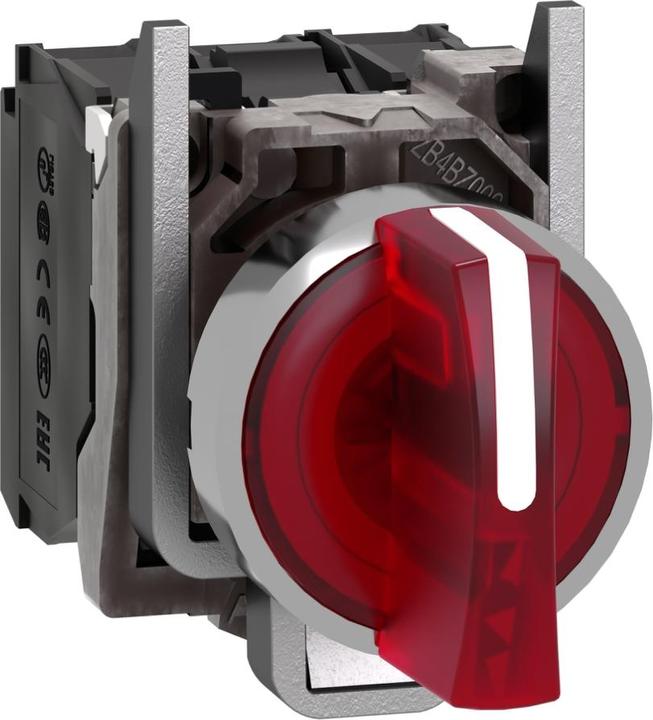

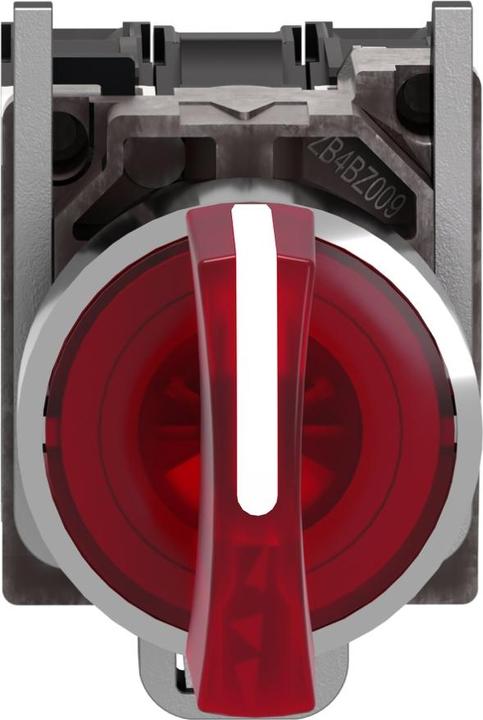

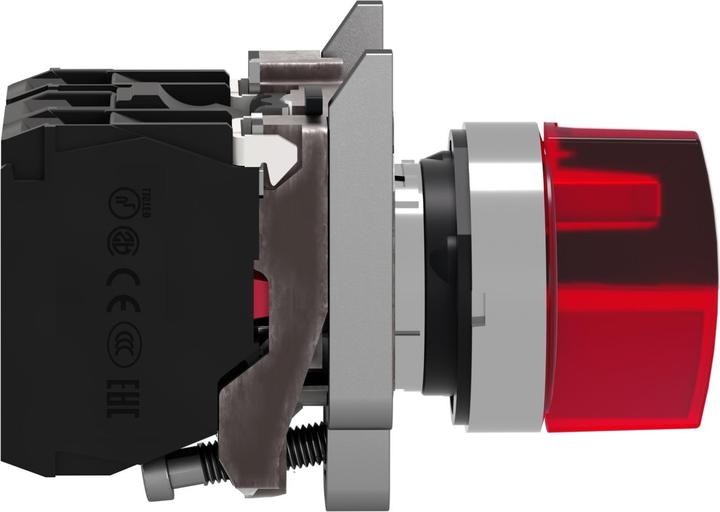

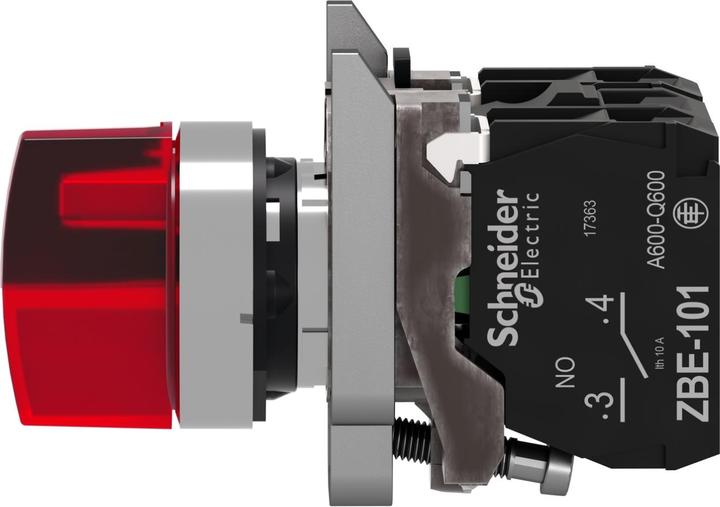

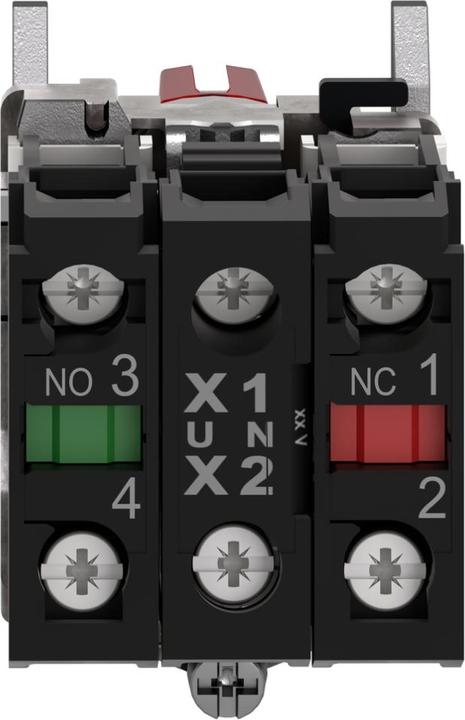

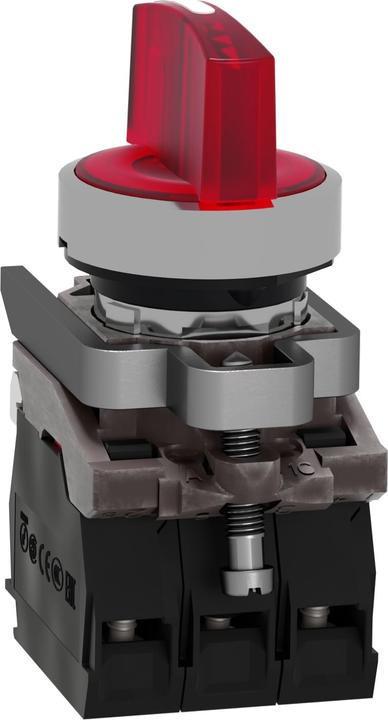

Schneider Electric Pilot Light Selector Switch XB4BK134B5

Manufacturer: Schneider Electric
Description: Pilot light selector switch 3 positions, 24VAC/DC
Type: XB4BK134B5
Number of switching positions: 3
Actuator design: short rotary knob
Suitable for lighting: yes
With light source: yes
Button color: red
Hole diameter: 22.5 mm
Switching function latching: yes
Momentary: no
Protection class (IP): IP66
Protection class (NEMA): other
Supply voltage: 24 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection design: screw connection
With front ring: yes
Material of front ring: metal
Front ring color: chrome

Schneider Electric Pilot Light Selector Switch XB4BK134B5: additional details
The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and optionally for 30mm mounting dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This pilot light selector switch in red includes a universal LED and requires a supply voltage of 24V ACDC. The switch features 3 positions as well as 1 normally closed and 1 normally open contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
