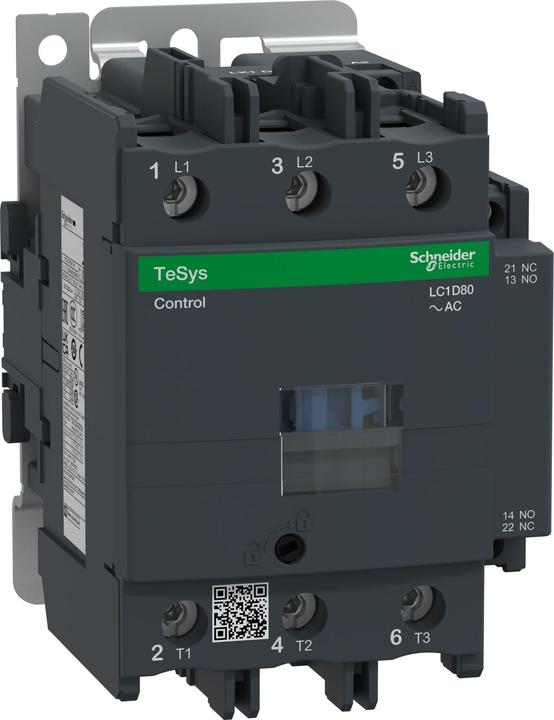

Schneider Electric power contactor LC1D80E5

Manufacturer: Schneider Electric
Designation: Power contactor 80A 48V 50Hz
Type: LC1D80E5
Rated control supply voltage Us at AC 50 Hz: 48 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 125 A
Rated operational current Ie at AC-3, 400 V: 80 A
Rated operational power at AC-3, 400 V: 37 kW
Rated operational current Ie at AC-4, 400 V: 80 A
Rated operational power at AC-4, 400 V: 37 kW
Rated operational power NEMA: 44.8 kW
Suitable for series installation: Yes
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Power contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC, rated operational power at AC-3, 400 V 37 kW, rated operational current Ie at AC-3, 400 V 80 A, coil 48 V AC. Dimensions (WxHxD) 85x127x130 mm, weight 1.59 kg. Category AC-1, AC-3, AC-4. Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. UL, CSA, CCC, EAC, LROS (Lloyds Register of Shipping), DNV-GL, RINA, BV certifications. Product standards acc. EAN: 3389110440423.
