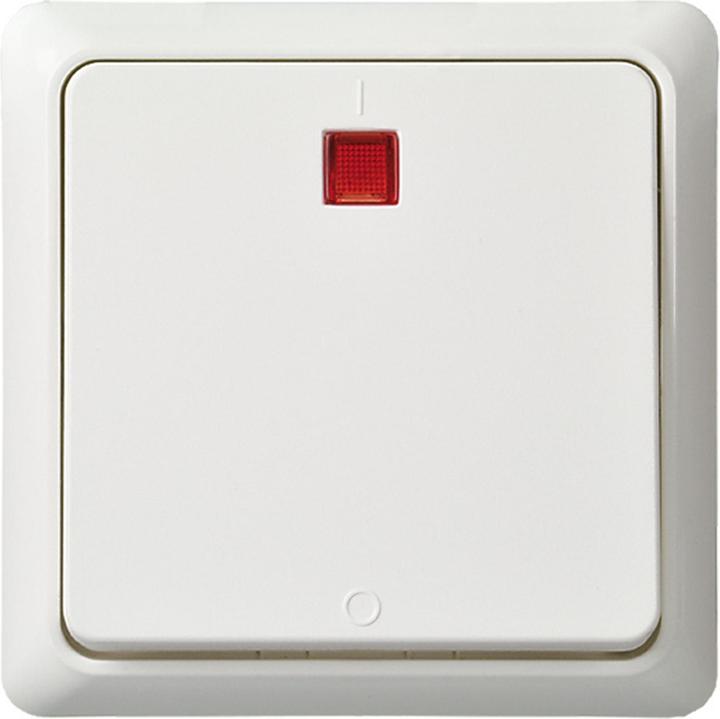

Elso flush-mounted control off switch 251214
Manufacturer: Elso
Designation: Flush-mounted control off switch pure white
Type: 251214
Switching type: Switch 2-pole
Operating type: Rocker/button
Composition: Basic element with complete housing
Push-button switch: No
Number of actuating rockers: 1
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
With mounting plate: No
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Pearl white
RAL number (similar): 9010
Text field/inscription area: No
Illumination: Yes
Illumination function: Orientation
Illumination type: Glow lamp
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Switching current for fluorescent lamps: 16 AX
Feedback contact: No
Connection type: Screw terminal
Washing machine switch: No
Device width: 80 mm
Device height: 80 mm
Installation depth: 24 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Elso flush-mounted control off switch 251214: more details
Control off switch 2-pole. Colour: pure white, with light-intensive glow lamp, for flush-mounted installation. Protection class IP 20, switch 16 A, 250 V AC, frame and rockers made of thermoplastic, can also be used in device holders with an installation depth of at least 32 mm. Screw terminals: Clamping range for copper conductors 1.5 mm and 2.5 mm, for secure connection of aluminium conductors 2.5 mm without pre-treatment.
