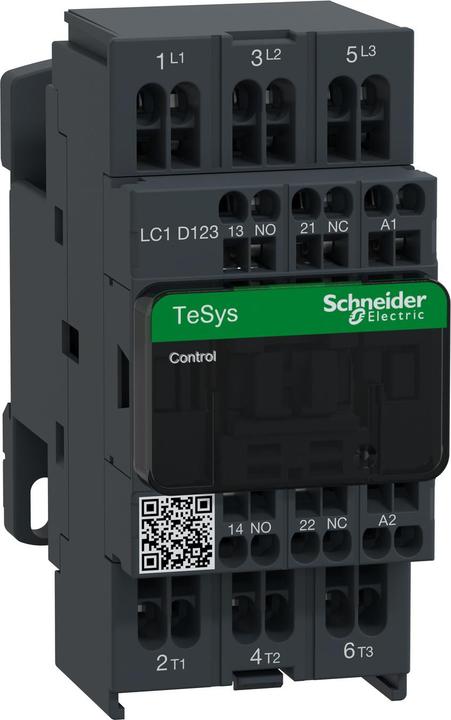

Schneider Electric power contactor LC1D123G7

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D123G7
Rated control supply voltage Us at AC 50 Hz: 120 V
Rated control supply voltage Us at AC 60 Hz: 120 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 20 A
Rated operational current Ie at AC-3, 400 V: 12 A
Rated operational power at AC-3, 400 V: 5.5 kW
Rated operational current Ie at AC-4, 400 V: 7.5 A
Rated operational power at AC-4, 400 V: 3 kW
Suitable for series installation: no
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V 5.5 kW, rated operational current Ie at AC-3, 400 V 12 A, coil 120 V AC.
Dimensions (WxHxD): 45x99x86 mm, weight: 0.325 kg.
Category: AC-3, AC-1, AC-4.
Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: LROS (Lloyds Register of Shipping), GL, UL, DNV, CCC, BV, RINA, CSA, GOST.
Product standards: EAN: 3389110802962.
