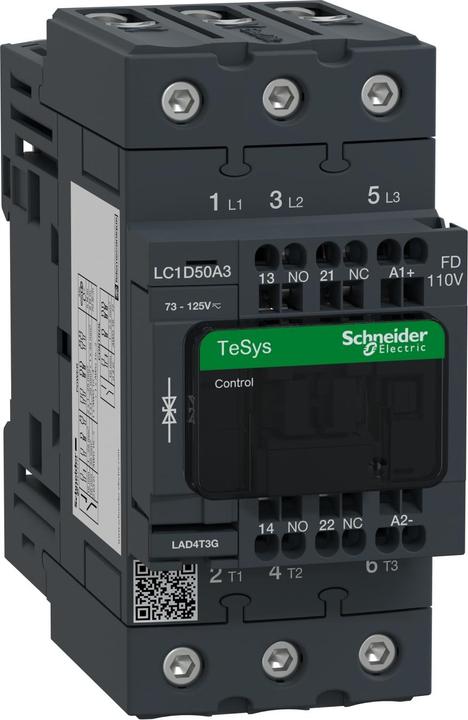

Schneider Electric power contactor LC1D50A3FD

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D50A3FD
Rated control supply voltage Us at DC: 110 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 80 A
Rated operational current Ie at AC-3, 400 V: 50 A
Rated operational power at AC-3, 400 V: 22 kW
Rated operational current Ie at AC-4, 400 V: 25 A
Rated operational power at AC-4, 400 V: 11 kW
Suitable for series installation: No
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 22 kW, rated operational current Ie at AC-3, 400 V: 50 A, coil: 110 V DC.
Dimensions (WxHxD): 55 x 122 x 120 mm, weight: 0.93 kg.
Category: AC-3, AC-4, AC-1.
Integrated bidirectional amplitude limiting diode.
Quick and easy set-up.
Safe and durable power connection with Everlink and spring terminals.
Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: RINA, CCC, LROS (Lloyds Register of Shipping), GOST, CSA, UL, BV, GL, DNV.
Product standards: EAN: 3389118327894.
