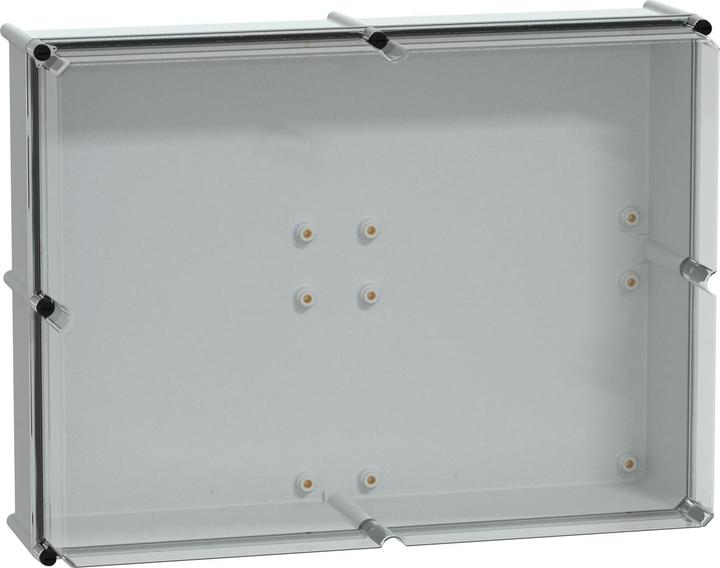

Schneider Electric Polyester Enclosure NSYPLS5472AG

Manufacturer: Schneider Electric
Description: Polyester enclosure 540x720x230mm
Type: NSYPLS5472AG
Mounting type: Surface-mounted
Cover type: Lid
Lid design: Closed
Door type: None
Transparent lid/door: Yes
With lock: No
Height: 540 mm
Width: 720 mm
Depth: 230 mm
Inner depth: 213 mm
Material thickness of enclosure: 2 mm
Material thickness of door/lid: 4 mm
Color: Gray
RAL number: 7035
Mounting option: Yes
Material of enclosure: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP66
Protection class (NEMA): 4X
Protection class: II
Impact resistance: IK09
Function maintenance: None

Additional details: Thalassa PLS Box Polyester back with transparent PC cover. Insulating module box. One-piece molded body. Wall-mounted. Highly transparent cover, removable lid locking screw. Polyester reinforced with fiberglass back, polycarbonate cover. Gray RAL 7035. IP65, IK09, NEMA 4X, 960°C fire resistance. Insulation class II.
