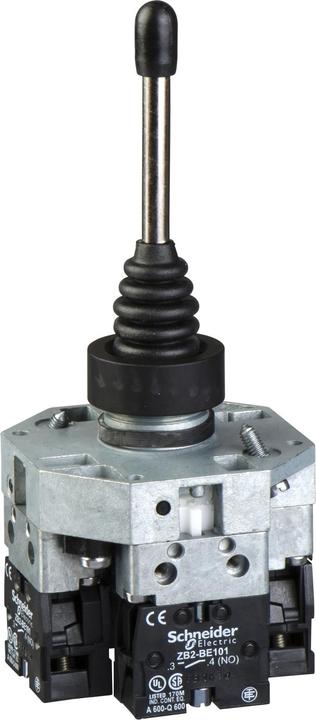

Schneider Electric Control Switch XD2GA84217

Manufacturer: Schneider Electric
Designation: Control Switch 4 RI
Type: XD2GA84217
Rated operational current Ie at AC-21: 10 A
Central mounting, hole diameter: 22 mm
Joystick length: 87 mm
Number of actuation directions: 4
Number of switching positions: 4
Number of contacts per actuation direction: 1
Return to neutral position: yes
Locking in neutral position: no
Code generator: no
Configurable analog output signal: no
With front ring: yes
Material of front ring: metal
Color of front ring: black
Protection class (IP): IP66
Protection class (NEMA): other

Schneider Electric Control Switch XD2GA84217: Joystick controller with a diameter of 22 mm and 4 directions - 1 contact per direction. It is part of the Harmony XD controller series for lifting applications.
