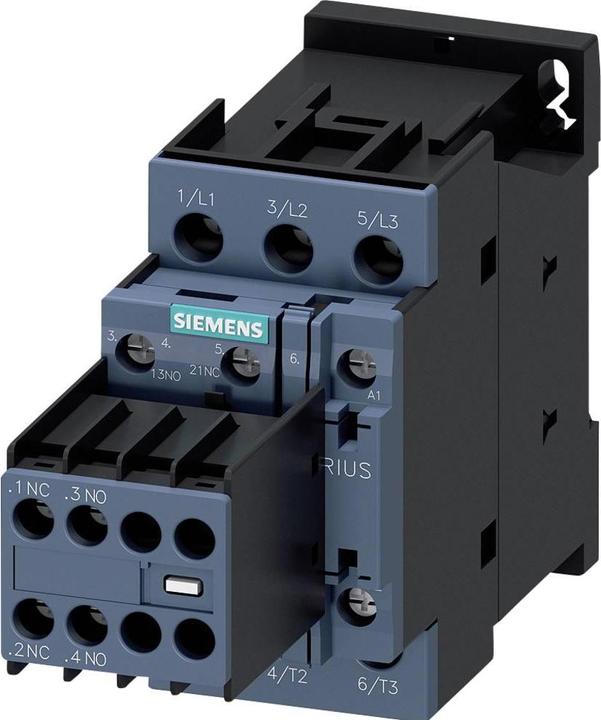

Siemens Contactor 3RT2027-1AP04 AC-3 15kW/400V

Price in EUR including VAT
Delivered between Tue, 22.7. and Thu, 24.7.
Only 2 pieces in stock at supplier
free shipping

Product details

Power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, AC 230 V, 50 Hz, auxiliary contacts: 2 NO + 2 NC, screw connection, size: S0, detachable auxiliary switch. The SIRIUS 3RT2 power contactor is designed for motor switching. The 3RT2 contactors are part of the SIRIUS modular system with optimally coordinated products. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the load branch. Many of the device combinations are factory-tested. The contactors provide optimal connection to the control system for every application (parallel, via ASI or IO-Link). Integrated auxiliary switches reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT2 contactors are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. They are available in various sizes and a wide power range for AC and DC operation. In addition to screw connection technology, the devices are also available with spring-loaded terminals for quick, maintenance-free, and vibration-resistant connections. The comprehensive accessories, such as auxiliary switches, auxiliary relays, etc., are uniform across all sizes. The available connection blocks, function modules, and the SIRIUS 3RV29 power supply system significantly reduce wiring effort. The 3RT2 power contactors replace the proven 3RT1 series (up to 55 kW). Simple, efficient, always up to date - the SIRIUS modular system.

Key specifications

input voltage
230 V
Scope of delivery
400VContactor 3RT2027-1AP04 AC-3 15kW
Output current type
AC/DC
Relay type
Power contactor
Item number
25465006

General information

Manufacturer
Siemens
Category
Relays
Manufacturer no.
3RT20271AP04
Release date
13.10.2022

Relay properties

Relay type
Power contactor
input voltage
230 V
Output current type
AC/DC
Resistor
10000000 Ω (ohm)
Switching function
Opener
Number of openers
2 x
Number of poles
3 x
Max. Switching capacity
15 kW
Manufacturer Type
3RT2027-1AP04

Smart home features

Smart Home
Compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
400VContactor 3RT2027-1AP04 AC-3 15kW

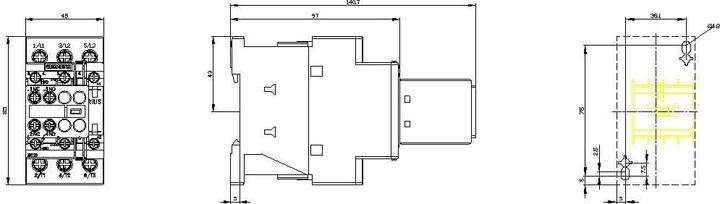

Product dimensions

Length
141 mm
Width
45 mm
Height
85 mm
