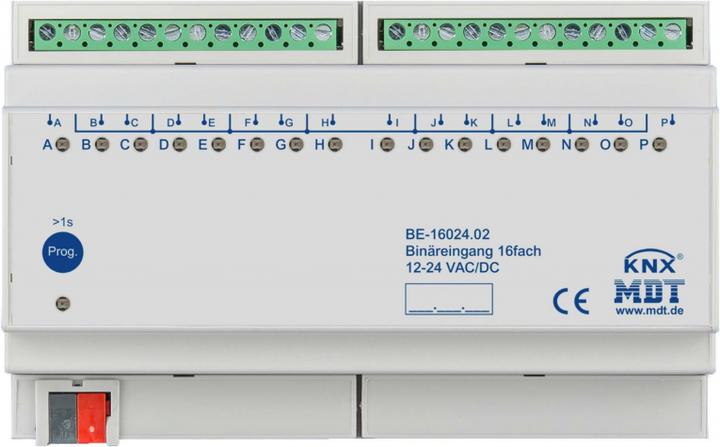

MDT technologies binary input 16-fold 8TE BE-16024.02

Manufacturer: MDT technologies
Designation: Binary input 16-fold 8TE REG, 24VAC/DC
Type: BE-16024.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 8
With bus coupling: Yes
Bus module removable: No
Control LED: No
With LED display: Yes
Number of inputs: 16
Input voltage: 12..24 V
Type of input voltage: AC/DC
External query voltage required: Yes
Protection class (IP): IP20

More details:
Binary input 16-fold, 8TE, REG, 24VAC/DC version. Version for control signals 12-24VAC/DC. LED display for each channel, cable length max. 100m. For connection of push buttons, switches, and window contacts. New multi-tap function sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long keystroke. Four integrated logic modules for evaluation of inputs (e.g., window closed or send second object). Normally open or normally closed operation to send contact state. Dimmer and shutter function for one- and two-button operation. Send values, forced operation. Scenes and blocking objects for each channel. Pushbutton operation with short/long pushbutton action and two objects. Cyclic sending and sending after reset.
