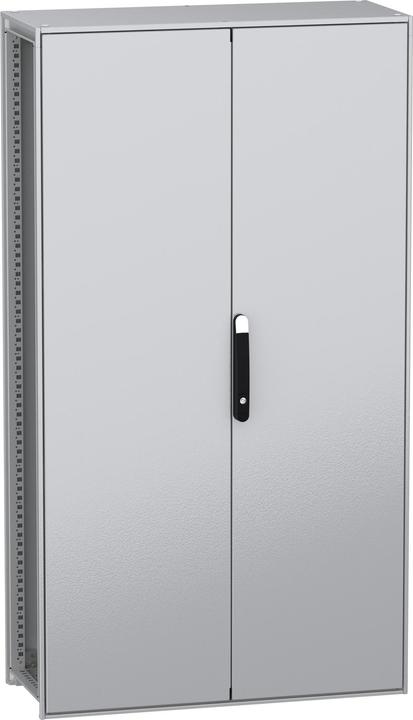

Schneider Electric Schneider stand enclosureNSYSFN1810402DPanelSeT SFN made from decarbonised
Product details
This PanelSet SFN is a two-door free-standing enclosure made of decarbonized steel, suitable for multipurpose applications. It contains recycled steel produced with renewable energy, resulting in a significant reduction in CO2 emissions. It has nominal dimensions of 1800 mm in height, 1000 mm in width, and 400 mm in depth. The frame and supports of the enclosure are made of galvanized steel to ensure a long lifespan. The doors and panels are made of sheet steel, while the handle is made of polyamide 6 with 30% glass fibers. An epoxy-polyester powder coating provides a smooth appearance. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. It features two simple doors, a back panel, a roof, two sliding rails, and a kit for quick-mount plate brackets. The doors have an opening angle of up to 120 degrees. The main door is equipped with a four-point lock and a handle that is secured with a 5-mm double-bit key for safety, while the secondary door has a locking system with a handle. The enclosure has an IP55 protection rating, meaning it is resistant to the ingress of dust, water, and oil. Additionally, the enclosure is impact-resistant and has an IK10 rating. Operation is comfortable with access from the back, front, and sides.
Distribution cabinet type | Switch cabinet |
mounting style | Stand-alone |
Length | 40 cm |
Width | 100 cm |
Height | 180 cm |
Item number | 42368817 |
Manufacturer | Schneider Electric |
Category | Electrical enclosures |
Manufacturer No. | NSYSFN1810402D |
Release date | 22.1.2024 |
Colour | Grey |
Exact colour description | Light grey RAL number: 7035 |
Material group | Metal |
Material | Steel |
Distribution cabinet type | Switch cabinet |
mounting style | Stand-alone |
Protection type (IP code) | IP55 |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Length | 40 cm |
Width | 100 cm |
Height | 180 cm |
Product Safety |
