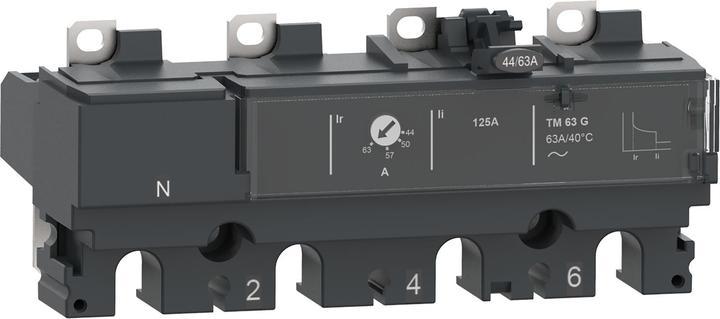

Schneider Electric Thermomagnetic Release Device C104MG016

Manufacturer: Schneider Electric
Designation: Thermomagnetic Release Device TM16G
Generator Type: C104MG016
Overload Release Current Setting: 11.2 - 16 A
Initial Value of Undelayed Short-Circuit Release Setting Range: 63 A
Final Value of Undelayed Short-Circuit Release Setting Range: 63 A
Rated Continuous Current Iu: 16 A
Type of Voltage for Operation: AC/DC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Rated Control Supply Voltage Us at DC: 750 V
Number of Poles: 4
Short-Circuit Release Function: Undelayed
With Earth Fault Protection Function: No
Type of Motor Protection: Thermal/Magnetic Release

The TM16G is a thermomagnetic release device with 4 poles, used in the ComPacT NSX 100 circuit breakers. This thermomagnetic release device, with a rated current of 16 A, is the best choice for generator protection applications. It features an adjustable thermal overload protection and a fixed magnetic protection against short circuits. This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX base switch and ComPacT NSX.
