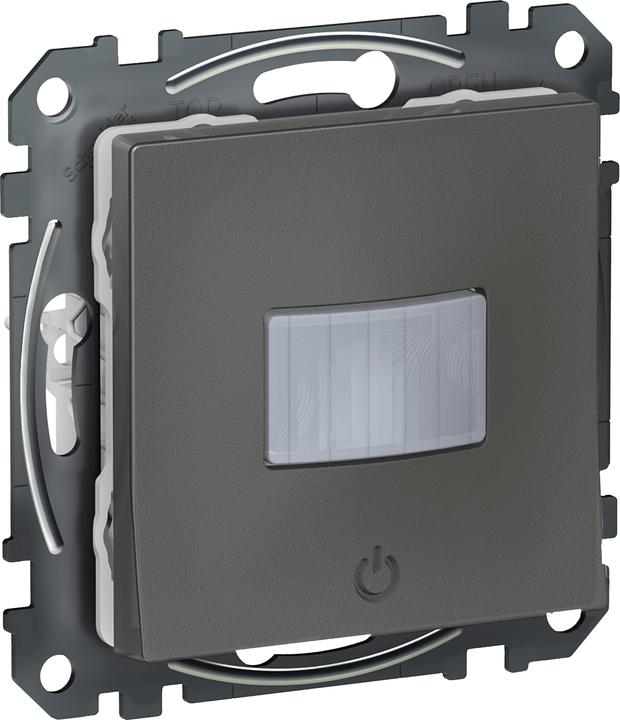

The motion detector with switch 10 A detects moving heat sources (e.g., people) and can switch on resistive, inductive, or capacitive loads for an adjustable time. It is suitable for installation in a 60 mm flush-mounted box and features screw terminals. It is designed for screw mounting without claws.

Functions:

• Automatic operation: Automatically switches on consumers when motion is detected and depending on ambient brightness (default setting).
• Manual operation: Switches on consumers at the device, regardless of ambient brightness, operates with a secondary switch (mechanical button or other motion detectors).
• Detection brightness: 5-500 Lux (factory setting 50 Lux).
• Delay time: 1 second to 30 minutes (factory setting 5 minutes).
• Test mode: Checks motion detection and installation.
• Secondary operation: Sends a switching command to a primary device when motion is detected.

Technical data:

• Rated voltage: AC 230 V, 50 Hz.
• Rated current: max. 10 A, cos 0.6.
• Outputs: 1 normally open contact.
• Max. switching power per channel: LED 200 W, incandescent lamps 2200 W, HV halogen lamps 2000 W, LV halogen lamps with magnetic transformer 500 VA, electronic transformers 1050 VA, energy-saving lamps 200 W, motor load 1000 VA.
• Neutral wire: required (3-wire system).
• Protection: 16 A circuit breaker.
• Cable area: max. 2x2.5 mm², 0.5 Nm.
• Secondary switch: single button, unlimited number, max. 50 m.
• Detection range: 160 degrees, range: approximately 8 m.
• Control elements: 1 button.
• Display elements: 1 LED (behind the lens).
