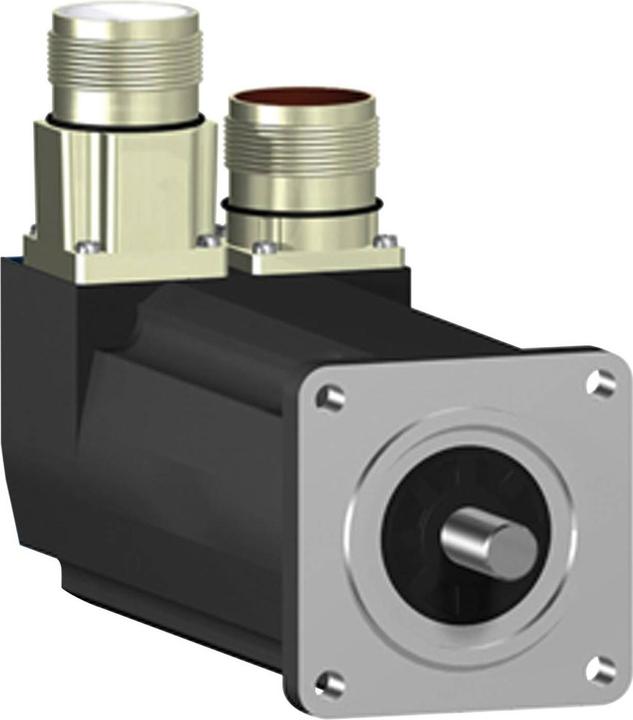

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 0.5 Nm and achieves a peak torque of 1.5 Nm. Its rated speed can reach up to 9000 RPM, depending on the supply voltage. The voltage-dependent rated power can be up to 440 W. The built-in encoder is a single-turn type with 128 pulses per revolution (128x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 straight connectors. The motor flange for mounting has a diameter of 55 mm. The drive shaft has a diameter of 9 mm. The shaft end is smooth and meets the protection class IP54. The motor housing complies with protection class IP65. An integrated holding brake is included. For operating the synchronous motor, the servodrives from the Lexium series Lexium 52 and Lexium 62 are recommended.
