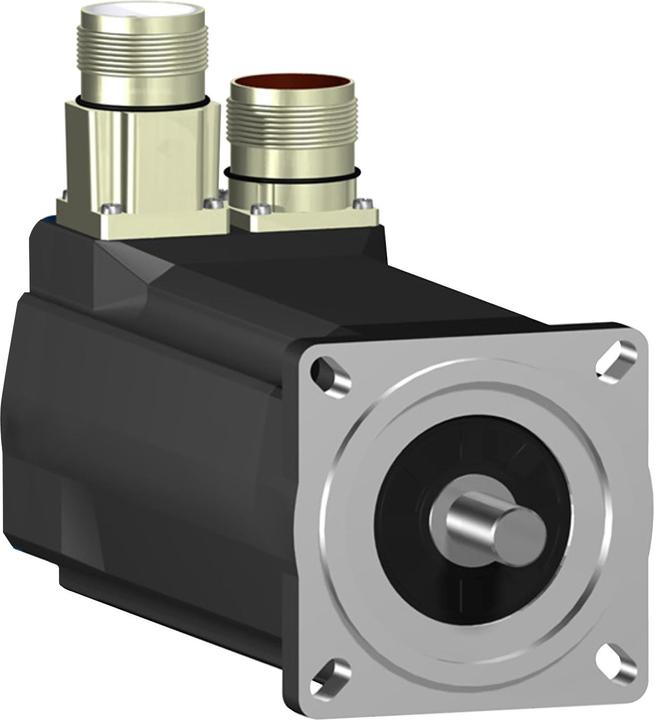

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 2.2 Nm and achieves a peak torque of 7.6 Nm. Its nominal speed can reach up to 7200 RPM, depending on the supply voltage. The voltage-dependent nominal power can go up to 1360 W. The built-in encoder is a multiturn type with 128 periods/revolution (128x1024x4096) in SinCos Hiperface format. The electrical connection is made via 2x M23 straight connectors. The motor flange for mounting has a diameter of 70 mm. The drive shaft has a diameter of 11 mm. The shaft end is smooth and complies with protection class IP65. The motor housing also meets protection class IP65. There is no holding brake. For the operation of the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.
