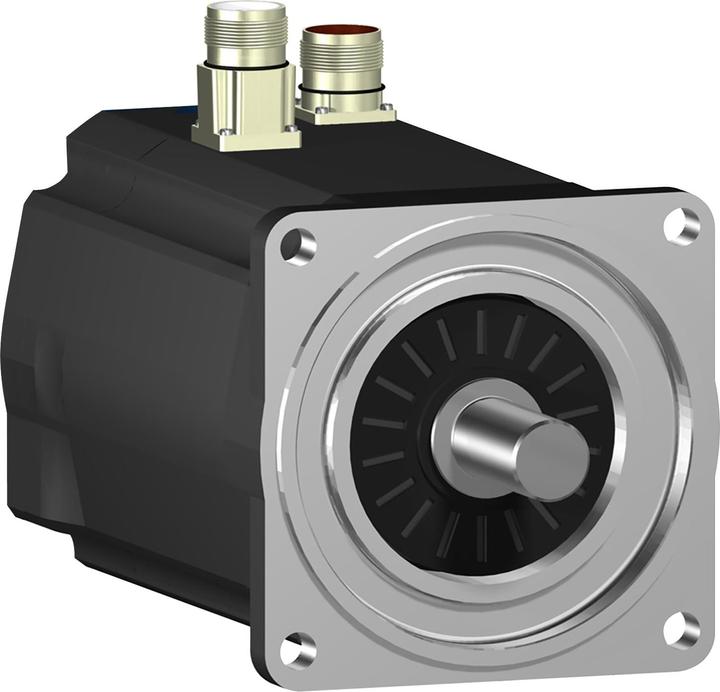

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it achieves a higher power density in a compact design. This servo has a nominal continuous stall torque of 5.8 Nm and reaches a peak torque of 18.3 Nm. Its nominal speed can go up to 4800 rpm, depending on the supply voltage. It provides a voltage-dependent nominal power of up to 2210 W. The built-in encoder is a multiturn type with 128 periods/revolution (128x1024x4096) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors in straight configuration. The motor flange for mounting is 100 mm. The drive shaft has a diameter of 19 mm. The shaft end is smooth and meets the IP65 protection class. The motor housing also complies with the IP65 protection class. An integrated holding brake is included. For operating the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.
