Best selling Wiring closet technologies from Hager
This page always stays fresh and updates automatically.
1. Hager FWB62S
Field distributor AP certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. Designed for the installation of devices up to 125 A, with air and creepage distances according to VDE 0110/1-2. The cabinet features a door made of powder-coated and baked steel sheet. From a cabinet width of 800 mm (3 compartments), it has a double-door construction. The right doors can be a maximum of 2 compartments wide. The complete cabinet is supplied with an installation kit that includes profiled mounting rails, 7.5 mm high DIN rails with a 125 mm center-to-center distance, and suitable contact hazard protection covers, including mounted PE/N QuickConnect connections on a bracket. Cable entries are available at the top and bottom through removable flexible plastic flange plates, which are also interchangeable. The door has adjustable hinges on the inside and an opening angle of 110°. Doors can be hinged on the right or left and feature a tool-free interchangeable door hinge. The door lock is standard with a three-point locking mechanism and a lockable folding handle. Interchangeable, lockable locking systems and doors are available as accessories.
2. Hager DC-Lastenschalter SB432PV
Disconnector DC 4-pole 1000V 32A. Switch-disconnector for mounting on top-hat rail or mounting plate, rotary actuator can be locked directly on the device in the OFF state with a padlock. Ensures switching on and off under load and a safety disconnect function for PV systems with max. 1000 V and 32A.
3. Hager Clamp support Volta VZ464 QuickConnect equipped 4R
The Volta VZ464 QuickConnect terminal carrier is a high-quality accessory for distribution cabinets that enables efficient and secure connections of electrical wires. With a 4-row arrangement, this terminal carrier provides space for a variety of PE/N terminals designed for installation in surface-mounted and flush-mounted distribution boards. The plug terminals are suitable for cable cross-sections from 1.5 to 4 mm², while the screw terminals are designed for larger cross-sections from 1.5 to 25 mm². The terminal carrier is a practical solution for electrical installations that require reliable and tidy wiring. The use of high-quality materials ensures a long lifespan and high operational safety. The terminal carrier is easy to install and offers a flexible solution for various applications in the field of electrical engineering.
- Suitable for surface-mounted and flush-mounted distribution cabinets
- Space for up to 21 N and 20 PE terminals
- Compatible with cable cross-sections from 1.5 to 25 mm²
- Easy installation through QuickConnect system.
4. Hager Phase busbar
The Hager KCF668L phase busbar is a high-quality accessory for distribution boards that ensures a reliable connection in electrical installations. This 3-pole and neutral phase busbar is designed for vertical installation on the left-hand side and offers a compact design with a width of 125 mm. It is suitable for use in 1-storey support plates and enables easy integration into existing systems. With a rated voltage of up to 415 volts and a rated current of 63 amps, the phase busbar is suitable for a wide range of applications in electrical installations. The use of high-quality materials ensures a long service life and safe operation. The phase busbar comes in a neutral grey colour that blends harmoniously into various installation environments. Suitable for 1-level support plates. Nominal cross-section of 10 mm². Counter access at the top. Pin-shaped cable lug for easy connection. Insulated design for additional safety.
5. Hager Changeover switch 80A HI404R
The Hager HI404R is a powerful load switch designed for use in low-voltage circuits. With a rated current of 80 Amperes and an input voltage of 380 to 690 Volts, this 4-pole switch provides a reliable solution for load switching. It meets the requirements of DIN EN 60947-3 and ensures safe disconnection of circuits. The HI404R can be installed on a DIN rail or a mounting plate, allowing for flexible integration into various distribution board configurations. The three switching positions (I - 0 - II) offer easy handling and control over the connected circuits. With an IP20 protection rating, the switch is suitable for use in dry indoor environments and delivers robust performance for industrial applications.
- Suitable for load switching between two low-voltage circuits
- Complies with the DIN EN 60947-3 standard for safety disconnection
- Flexible mounting options on DIN rail or mounting plate
- Three switching positions for easy operation.
6. Hager Small distribution board
This 5-row distribution board is equipped with three RCDs and 15 LS1P circuit breakers, as well as one LS3P circuit breaker. The installed modular devices feature the proven Quickconnect technology. This variant additionally includes one surge protection device and one main line branch terminal. With this, we offer you a common version of the Volta small distribution board, fully equipped and pre-wired.

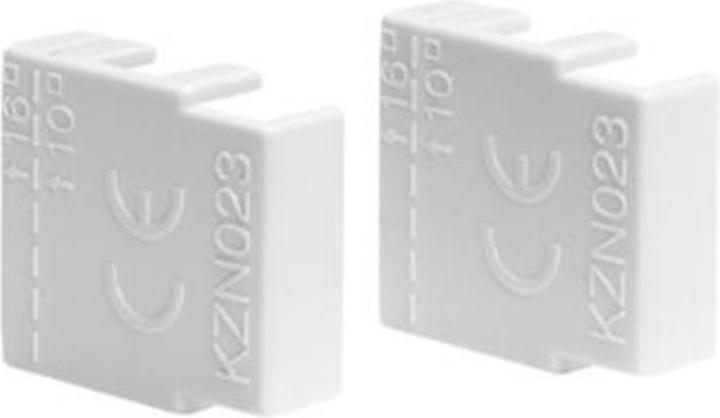

7. Hager End cap for phase rail 2P and 3P
The Hager end cap for busbars (model KZN023) is an essential accessory for the safe and efficient use of electrical distribution cabinets. This end cap is suitable for both 2-pole and 3-pole busbars and provides effective touch protection. Made from high-quality plastic, it ensures durability and reliability for indoor use. The installation of this end cap is straightforward and enhances the safety of the electrical installation by covering the open ends of the busbar, thereby minimizing the risk of electric shocks. Weighing only 1 g, it is lightweight and easy to handle. The Hager end cap KZN023 is an indispensable component for any electrical installation that prioritizes safety and functionality.
- Suitable for 2-pole and 3-pole busbars
- Provides effective touch protection
- Made from durable plastic
- Easy installation for safe electrical applications.
Wiring closet technology
Quantity discount
EUR1,69 per piece for 2 units
Hager End cap for phase rail 2P and 3P

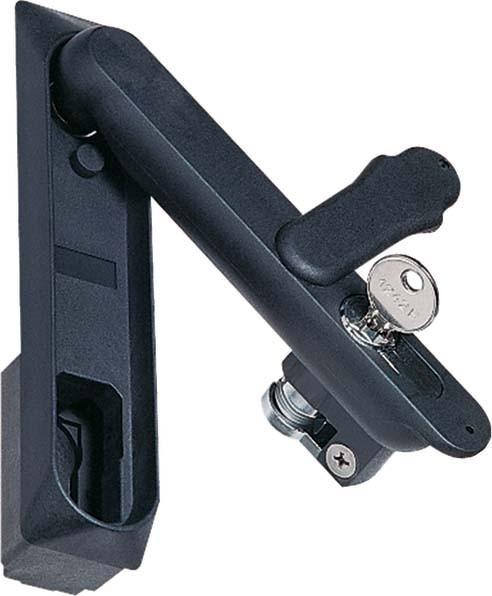

8. Hager FZ508 Schliessung
Locking, universal, swivelling lever with lock no. E1242 with 2 keys, IP5-6.
9. Hager door sign
Door sign with folding handle for cabinet IP44, universal meter cabinet solution. Cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. Composed of a cabinet with a door made of powder-coated, baked, sturdy profiled 1 mm thick steel sheet. Interior lining entirely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Rear pre-forming in the plastic part. Busbar connections as dual-sided, lateral, tool-free opening flanges in the lower area for busbar connection of various cabinets or in conjunction with a cable junction box and connection set. In addition to the entry in the NAR, there are also openings in the area of the AAR (for heights of 1100 and 1400 mm) and RfZ (for height of 1100 mm). Door flush with the front with internal, adjustable hinges, optionally hinged on the right or left with a 110° opening angle. Door lock with pre-striker, interchangeable with other locks. Cabinets can be flanged side by side and on top of each other. Cabinet size from 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be introduced from below or the side into the lower connection area of the meter cabinet and connected there according to VDE-AR-N 4100:2019-04. Height: 1100 mm or 1400 mm, Width: __ mm, Depth: 205 / 160 mm, RAL color: 9010, protection class 44, protection class II. Rated current of the busbar system 250 A. Design according to VDE-AR-N 4100:2019-04 meter system for __ meter place(s). According to the technical connection conditions (TAB) of the VNB __ for electronic household meters (eHZ) or meters with 3-point fastening (3HZ). For reference systems with typical household consumption max. 63 A (10 mm²) according to DIN 18015-1 (apartments, general, reserve, heat pump) for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04 (e.g., PV up to 22 KW).

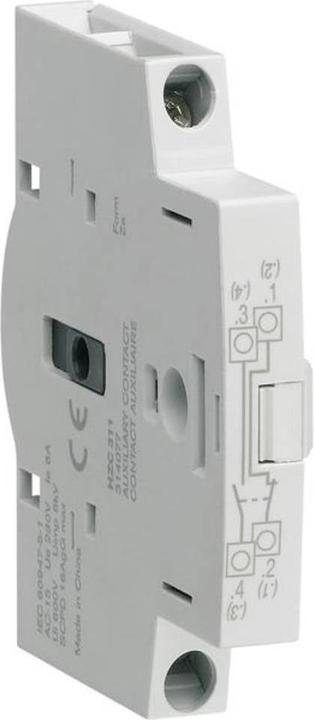

10. Hager Auxiliary contact HZC311 20-125A
The HZC311 auxiliary contact from Hager is a reliable accessory for load disconnect switches with a rated current of 20 to 125 Amperes. It features a contact configuration with one normally closed and one normally open contact, allowing for flexible control and monitoring of electrical circuits. The auxiliary contact is designed for use in industrial and commercial applications, ensuring safe and efficient functionality. With a rated voltage of 230 volts and a rated operational current of 6 Amperes at AC-15, this auxiliary contact is ideal for various electrical installations. It is mounted via side installation, and the electrical connection is made through a screw terminal, simplifying the installation process. The HZC311 auxiliary contact is an essential component for optimizing system power supply and contributes to the safety and efficiency of electrical systems.
- Contact configuration: 1 normally closed and 1 normally open
- Rated current of 20 to 125 Amperes
- Mounting type: side installation with screw terminal
- Suitable for load disconnect switches with a rated voltage of 230 volts.
