ToolkitRC Q6AC Charger – AC/DC Multifunction Charger with up to 1000 W

The powerful AC/DC multifunction charger is ideal for demanding applications in model building and battery technology. With a charging power of up to 1000 W and numerous charging programs, the device supports a wide range of modern battery chemistries and offers maximum flexibility for charging, discharging, balancing, and storing batteries.

It supports lithium batteries such as LiPo, LiHv, LiFe, LiIon, and LTO with up to 6 cells, as well as NiMH batteries up to 16 cells and lead batteries up to 10 cells. The versatile connection options with multiple XT60 and XT30 outputs allow for simultaneous charging of several batteries.

Additional features such as wireless charging with up to 15 W on the top of the device, as well as USB-C and USB-A outputs, expand its range of applications. An electronically controlled fan ensures efficient cooling during operation.

Product Features:

• Charging, discharging, balancing, and storage mode for lithium batteries
• Wireless charging with up to 15 W on the device's top
• Firmware updates via USB possible

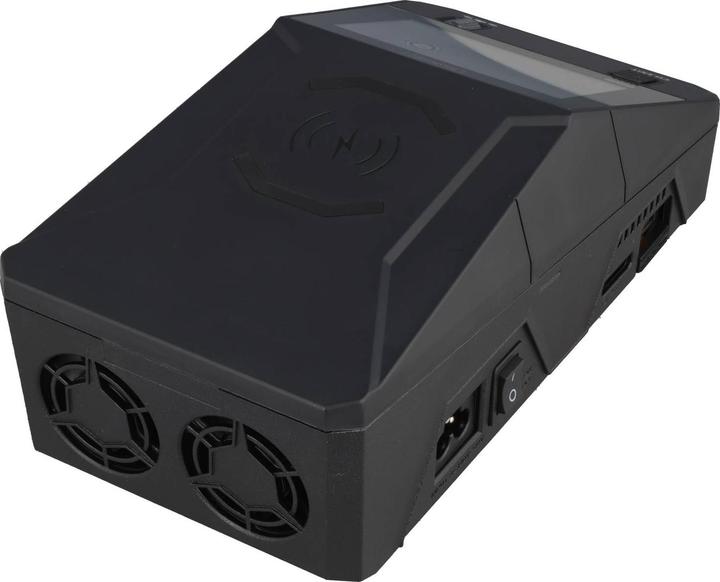

• Electronically controlled fan for optimal cooling
• Memory function for battery settings
• Multilingual menu (German, English, French, Italian)

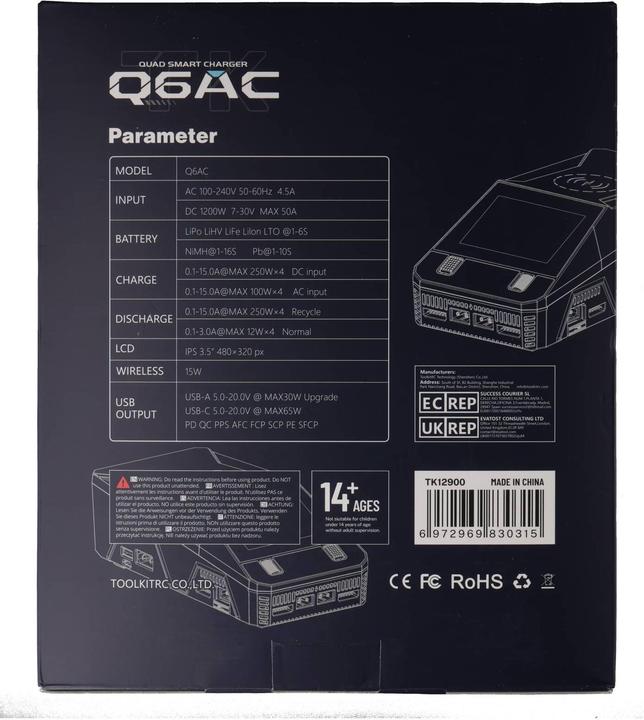

Technical Specifications:
Product Type: Multifunction Charger
AC Input Voltage: 100 – 240 V (max. 400 W)
DC Input Voltage: 7 – 30 V (max. 50 A / 1200 W)
Charging Power: 0.1 – 15 A @ 250 W × 4 ASYC / 0.1 – 25 A @ 500 W CH2/CH3 SYNC
Discharging Power: 250 W @ max. 15 A × 4 (Recycle Mode) / 15 W @ 3 A × 4 (Normal Mode)
Balancer Current: 800 mA @ 2–6S
Balancer Accuracy: < 0.005 V
Internal Resistance Measurement: 1 – 100 mΩ @ 1–6S

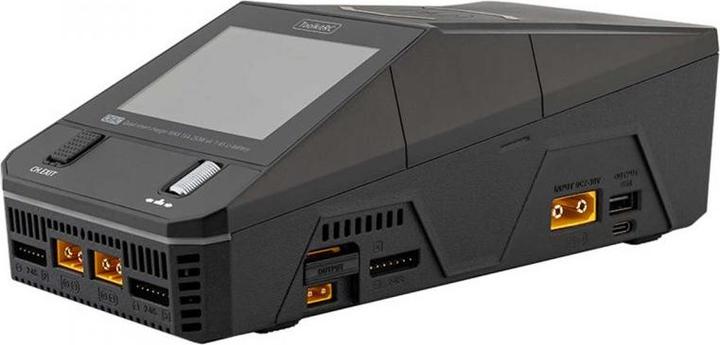

Outputs: 6 total (2 × XT60/XT30, 2 × XT60, 1 × USB-C, 1 × USB-A)
USB-C Output: 5 – 20 V @ max. 65 W
Wireless Charging: up to 15 W
Display: 3.5" IPS LCD, 480 × 320 pixels
Dimensions: 230 × 125 × 95 mm
Weight: 1400 g

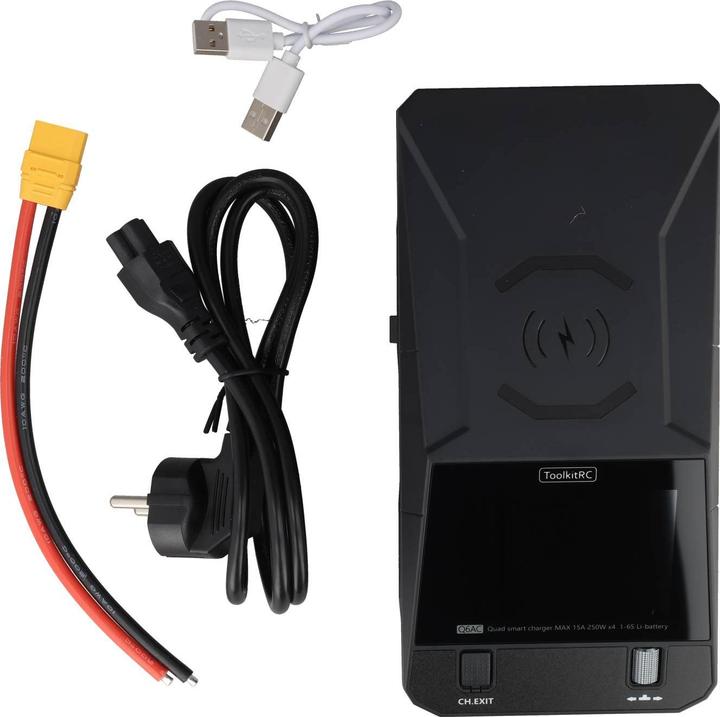

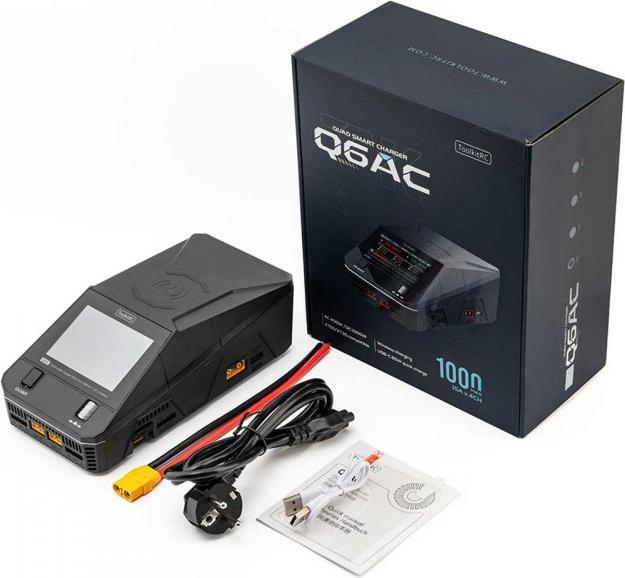

Included in Delivery:

• ToolkitRC Q6AC Charger
• Power Cable
• Various Connection Cables
• Quick Start Guide
• Screen Protector.
