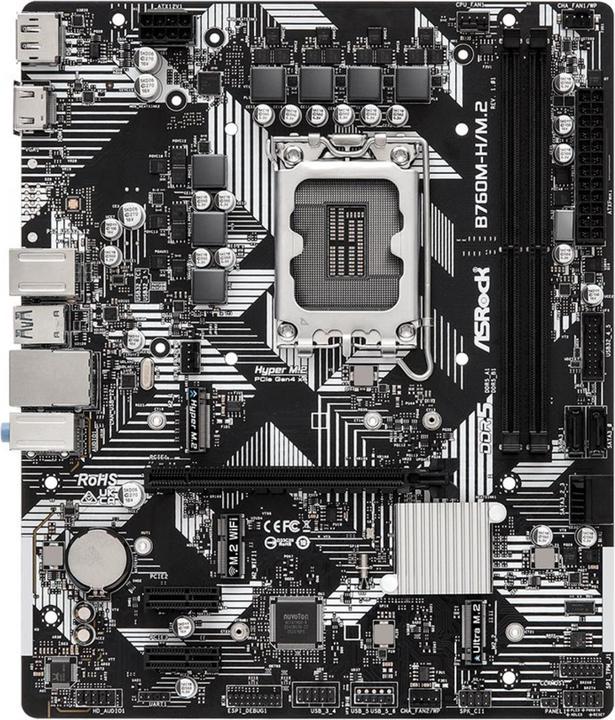

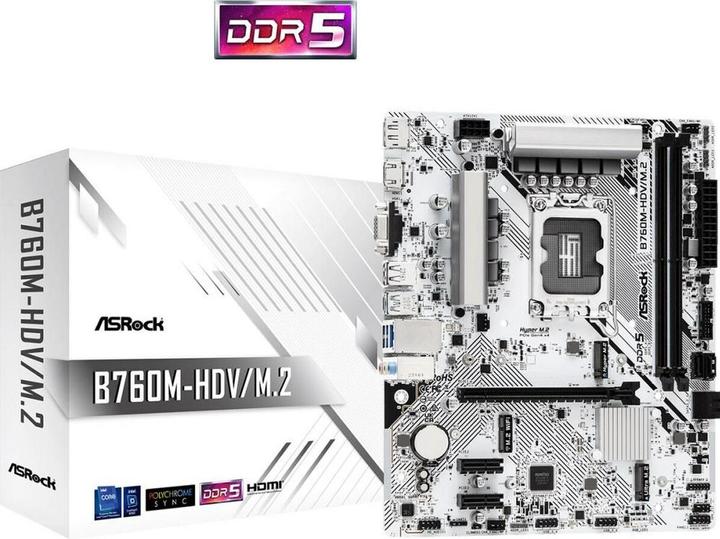

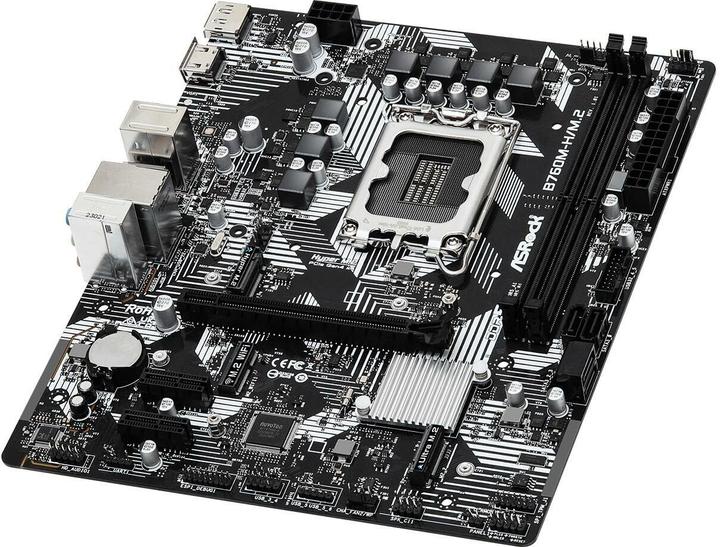

AsRock B760M-HDV/M.2
LGA 1700, Intel B760, mATX3 Stück bestellt
Produktinformationen
Das ASRock B760M-H/M.2 Mainboard bietet starke Leistung und moderne Features für anspruchsvolle Nutzer. Eine stabile Stromversorgung, DDR5-Unterstützung und PCIe 4.0 sorgen für hohe Geschwindigkeiten, während 2,5 Gb/s-LAN und USB-C optimale Konnektivität garantieren. Dank Polychrome RGB lassen sich individuelle Lichteffekte gestalten, und die automatische Treiberinstallation macht die Einrichtung besonders einfach. Maximale Performance, einfache Handhabung – perfekt für jedes Setup.
Prozessor-Familie | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Arbeitsspeichertyp | DDR5-RAM |
Anzahl Speichermodule (RAM) | 2 x |
Interne Anschlussmöglichkeiten | M.2 (2x), S-ATA III (4x) |
Mainboard Features | Front Panel Audiostecker |
Artikelnummer | 37763329 |
Hersteller | AsRock |
Kategorie | Mainboard |
Herstellernr. | 90-MXBMJ0-A0UAYZ |
Release-Datum | 29.8.2023 |
Verkaufsrang in Kategorie Mainboard | 100 von 884 |
Formfaktor | Micro ATX (mATX) |
Sockel | LGA 1700 |
Chipsatz | Intel B760 |
Mainboard Features | Front Panel Audiostecker |
Betriebssystem Kompatibilität | Windows, Windows 10 |
BIOS Typ | EFI AMI |
Prozessor-Familie | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Speichermodule (RAM) | 2 x |
Max. Speicher (RAM) | 96 GB |
Arbeitsspeicher Chip | DDR5-7200 |
Max. RAM OC | 7200 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 4800 MHz, 5200 MHz, 5600 MHz |
Arbeitsspeichertyp | DDR5-RAM |
RAM-Puffer | unbuffered |

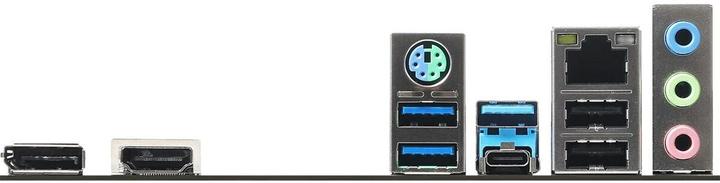

Video-Anschlüsse | D-Sub (1x), DisplayPort (1x), HDMI (1x) |
Video-Anschluss Version | Displayport 1.4, HDMI 2.1 |
Netzwerk-Anschlüsse | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet Controller Marke | Realtek |
Ethernet Controller | Dragon RTL8125BG, Realtek RTL8125-BG |
Max. Port Geschwindigkeit | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | HDMI (1x), Mikrofon |
RAID Konfiguration | 0, 1, 10, 5 |
Interne Anschlussmöglichkeiten | M.2 (2x), S-ATA III (4x) |
Erweiterungs-Slot | PCI Express x16 (1x), PCI Express x16 (2x) |
PCI Express Version (max.) | 4 |
Anzahl Lüfter Stecker | 1 |
USB-Anschlüsse | USB-A, USB-C |
Genaue USB-Anschlüsse | USB-A 3.2 Gen 1 (3x) |
Strom Anschlüsse | 24-pin ATX, 8-pin ATX 12V |
Ursprungsland | China |
CO₂-Emission | |
Klimabeitrag |
Lieferumfang | 2x SATA Kabel, I/O Shield, Schrauben |
Länge | 201 mm |
Breite | 244 mm |
Gewicht | 500 g |
Länge | 28 cm |
Breite | 24 cm |
Höhe | 6 cm |
Gewicht | 860 g |
