Produktinformationen

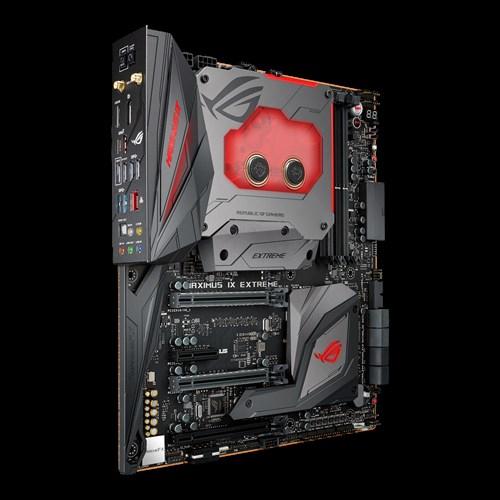

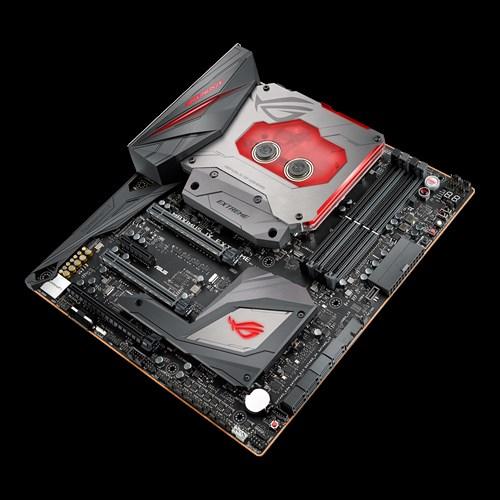

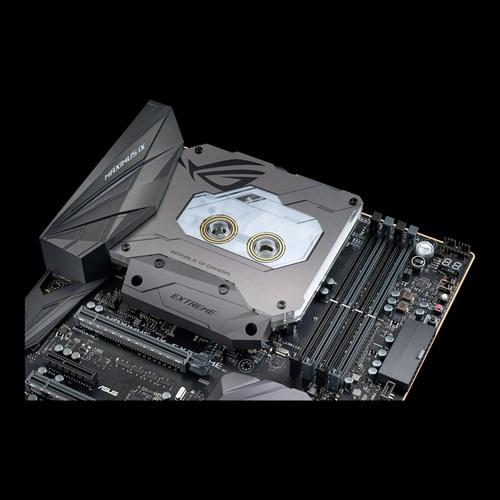

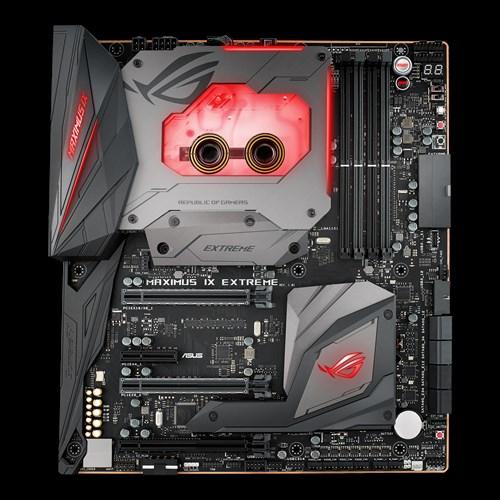

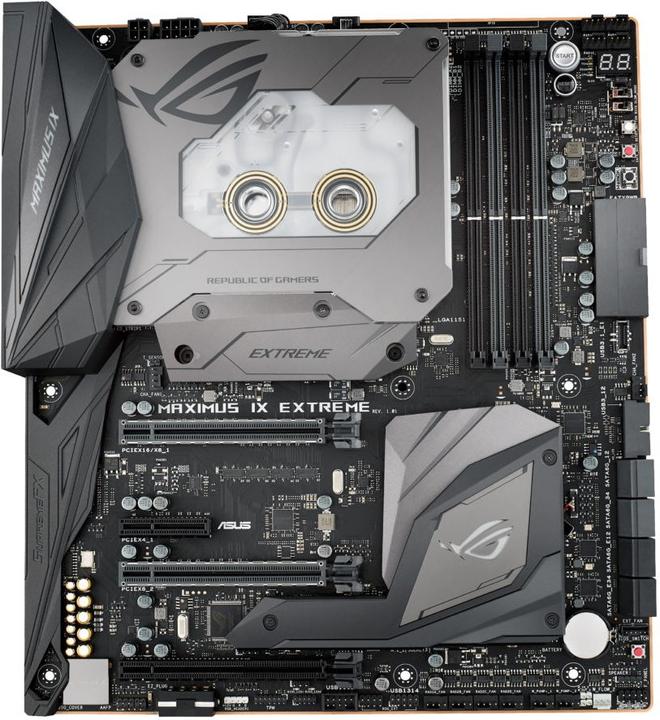

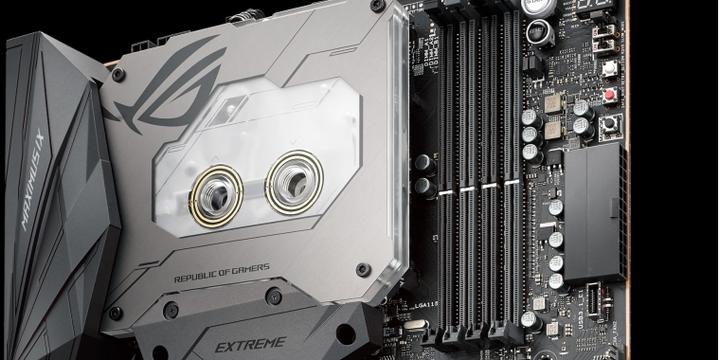

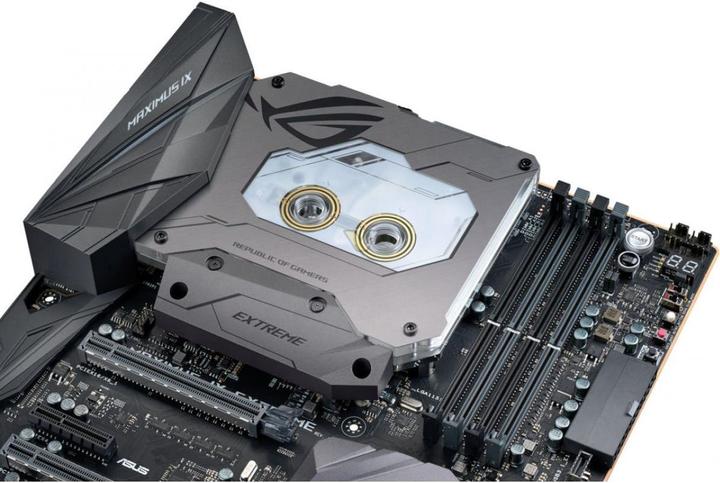

Meisterhaftes Design von leidenschaftlichen ROG-Ingenieuren und einer Gruppe von Industriepartnern – das Maximus IX Extreme ist das Gaming-Mainboard, das für ultimative Kühlung gebaut und für Höchstleistungen bestimmt wurde. Es ist die Lösung für Gamer und Wasserkühlungs-Enthusiasten, die sich mit nichts Geringerem als mit technischer Perfektion zufrieden geben!.
Prozessor-Familie | Celeron, Core i3 6th Gen, Core i3 7th Gen, Core i5 6th Gen, Core i5 7th Gen, Core i7 6th Gen, Core i7 7th Gen, Pentium |
Arbeitsspeichertyp | DDR4-RAM |
Anzahl Speichermodule (RAM) | 4 x |
Interne Anschlussmöglichkeiten | S-ATA III (8x) |

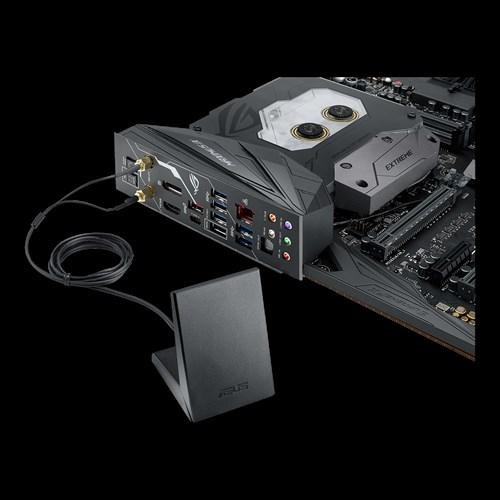

Kabellose Übertragung | WLAN |
Mainboard Features | Clear CMOS Button |
Artikelnummer | 6179687 |
Hersteller | ASUS |
Kategorie | Mainboard |
Herstellernr. | 90MB0SA0-M0EAY0 |
Release-Datum | 8.3.2017 |
Externe Links |
Formfaktor | E-ATX |
Sockel | LGA 1151 |
Chipsatz | Intel Z270 |
Mainboard Features | Clear CMOS Button |
BIOS Typ | UEFI AMI |
Kabellose Übertragung | WLAN |
WLAN Standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Prozessor-Familie | Celeron, Core i3 6th Gen, Core i3 7th Gen, Core i5 6th Gen, Core i5 7th Gen, Core i7 6th Gen, Core i7 7th Gen, Pentium |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Pins | 288 x |
Anzahl Speichermodule (RAM) | 4 x |
Max. Speicher (RAM) | 64 GB |
Arbeitsspeicher Chip | DDR4-2133 |
Max. RAM OC | 4133 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 2400 MHz, 2666 MHz |
Arbeitsspeichertyp | DDR4-RAM |
RAM-Puffer | unbuffered |

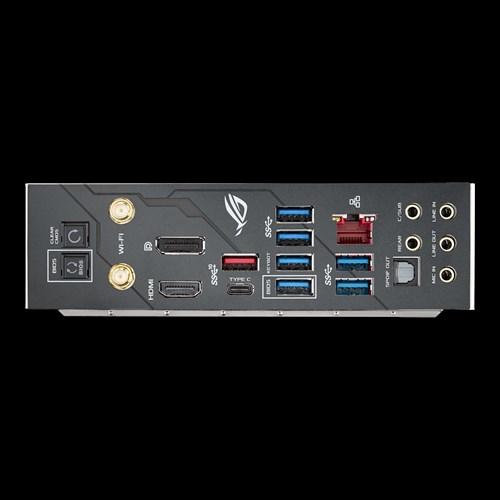

Video-Anschlüsse | HDMI (1x) |
Multi-GPU Technologie | AMD 3-Way CrossFireX, NVIDIA SLI |
Netzwerk-Anschlüsse | RJ45 Gigabit Ethernet (1x) |
Ethernet Controller Marke | Intel |
Ethernet Controller | I219V |
Max. Port Geschwindigkeit | 1 Gbit/s |

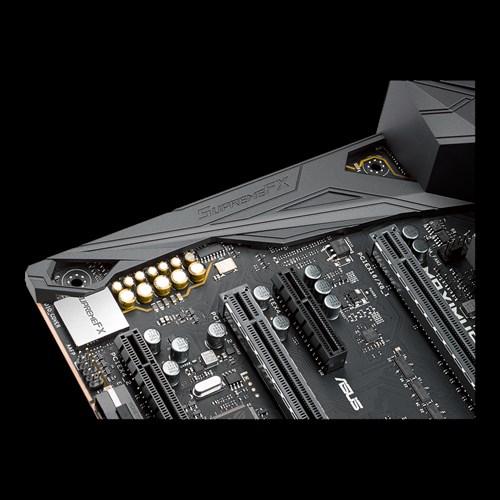

Chip | Supreme FX |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | Coaxial S/PDIF (1x) |
Interne Anschlussmöglichkeiten | S-ATA III (8x) |
Erweiterungs-Slot | PCI Express x16 (3x) |
Anzahl Lüfter Stecker | 7 |
Strom Anschlüsse | 24-pin ATX, 4-pin ATX 12V, 4-Pin Molex, 8-pin ATX 12V |
CO₂-Emission | |
Klimabeitrag |
Lieferumfang | Gebrauchsanleitung, S-ATA Kabel |
Länge | 305 mm |
Breite | 272 mm |
Höhe | 272 mm |
Länge | 37 cm |
Breite | 31.20 cm |
Höhe | 11.30 cm |
Gewicht | 4.18 kg |
