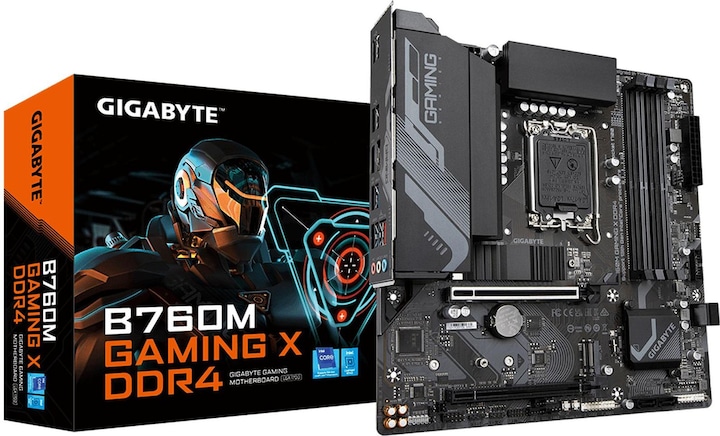

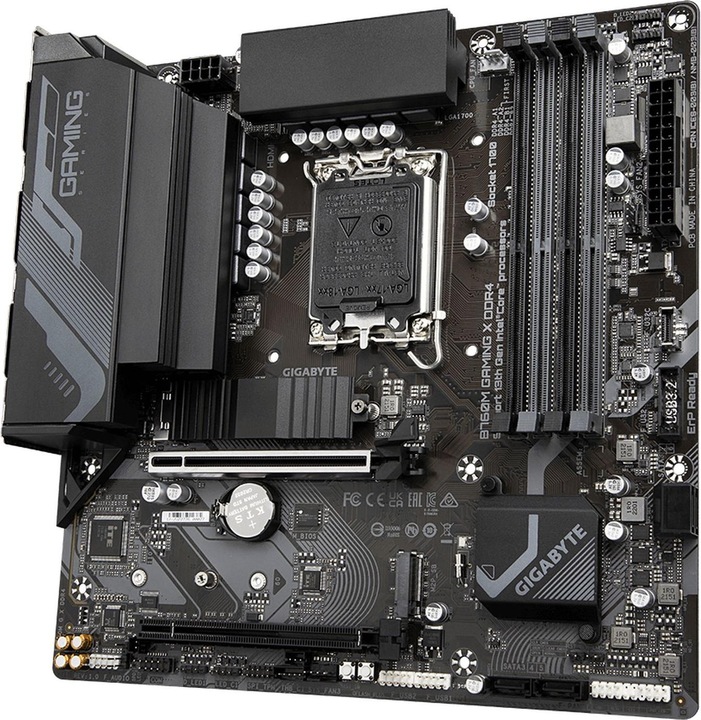

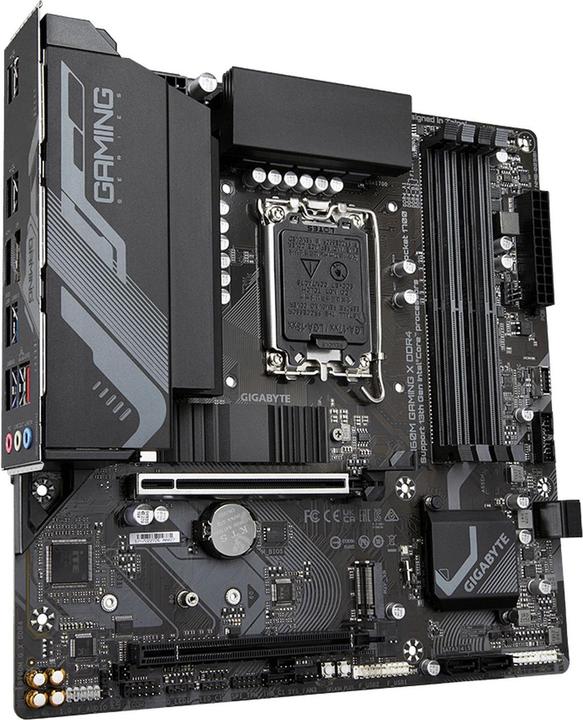

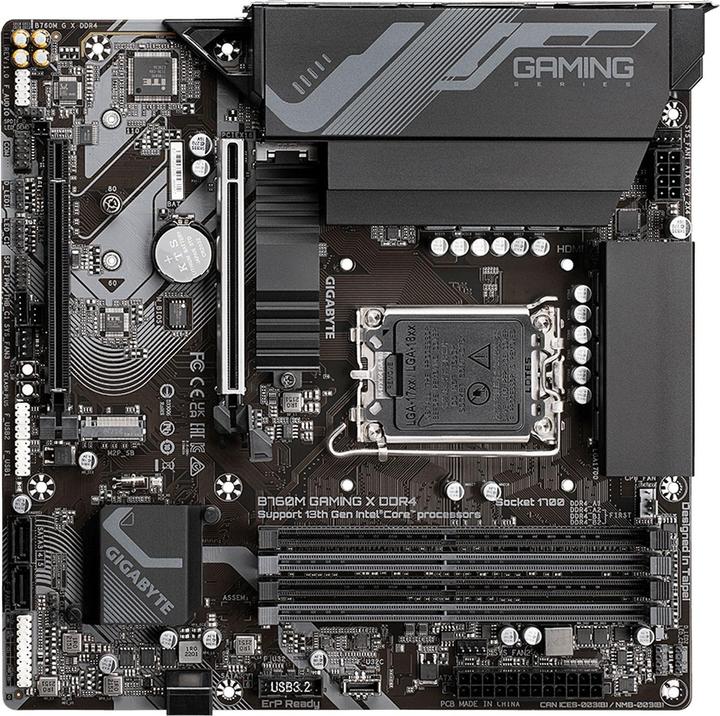

Gigabyte B760M GAMING X
LGA 1700, Intel B760 Express, mATXPreis in EUR inkl. MwSt.
kostenloser Versand
Das Gigabyte B760M Gaming X DDR4 Mainboard basiert auf dem Intel B760-Chipsatz und unterstützt Intel-Prozessoren für den Sockel 1700 der 13. und 12. Generation. Es verfügt über vier DDR4-DIMM-Slots im Dual-Channel-Betrieb für bis zu 128 GB Arbeitsspeicher.
Prozessor-Familie | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Arbeitsspeichertyp | DDR4-RAM |
Anzahl Speichermodule (RAM) | 4 x |
Interne Anschlussmöglichkeiten | 4-Pin CPU (1x) |
Mainboard Features | Clear CMOS Button, Front Panel Audiostecker, RGB Header |
Artikelnummer | 23653524 |
Hersteller | Gigabyte |
Kategorie | Mainboard |
Herstellernr. | B760M GAMING X DDR4 |
Release-Datum | 9.12.2022 |
Verkaufsrang in Kategorie Mainboard | 223 von 949 |
Formfaktor | Micro ATX (mATX) |
Sockel | LGA 1700 |
Chipsatz | Intel B760 Express |
Mainboard Features | Clear CMOS Button, Front Panel Audiostecker, RGB Header |
Betriebssystem Kompatibilität | Windows 10 |
BIOS Typ | UEFI AMI |
WLAN Standard | Wi-Fi 6E / 802.11az |
Prozessor-Familie | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Speichermodule (RAM) | 4 x |
Max. Speicher (RAM) | 128 GB |
Arbeitsspeicher Chip | DDR4-RAM |
Max. RAM OC | 5333 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Arbeitsspeichertyp | DDR4-RAM |
RAM-Puffer | unbuffered |

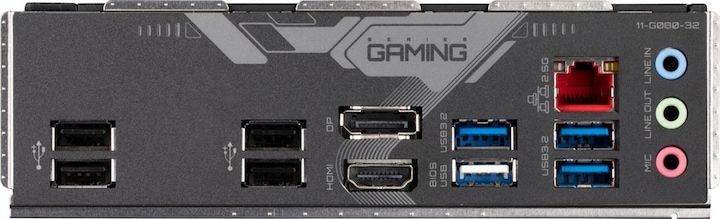

Video-Anschlüsse | DisplayPort, HDMI Type A |
Video-Anschluss Version | Displayport 1.2, HDMI 2.0 |
Netzwerk-Anschlüsse | RJ45 (1x) |
Ethernet Controller | Ethernet LAN, LAN |
Max. Port Geschwindigkeit | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | Klinke 3.5mm Line Out (3x) |
RAID Konfiguration | 0, 1, 10, 5 |
Interne Anschlussmöglichkeiten | 4-Pin CPU (1x) |
Erweiterungs-Slot | PCI Express x16 (1x), PCI Express x16 (Gen 4) (1x) |
PCI Express Version (max.) | 4 |
Anzahl Lüfter Stecker | 3 |
USB-Anschlüsse | USB-A |
Genaue USB-Anschlüsse | USB-A 2.0 (5x), USB-A 3.2 Gen 1 (3x) |
Strom Anschlüsse | 24-pin EATX, 8-pin ATX 12V |
Ursprungsland | China |
CO₂-Emission | |
Klimabeitrag |
Lieferumfang | Norton Internet Security |
Länge | 244 mm |
Breite | 244 mm |
Höhe | 35 mm |
Gewicht | 1400 g |
Länge | 27 cm |
Breite | 28 cm |
Höhe | 7 cm |
Gewicht | 1.35 kg |
