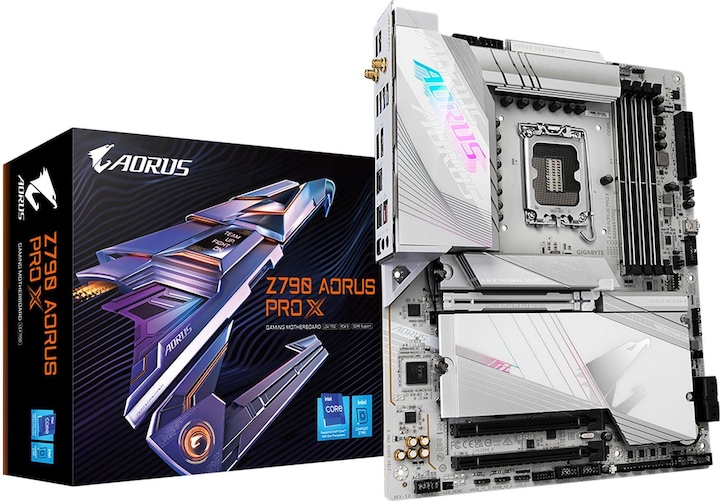

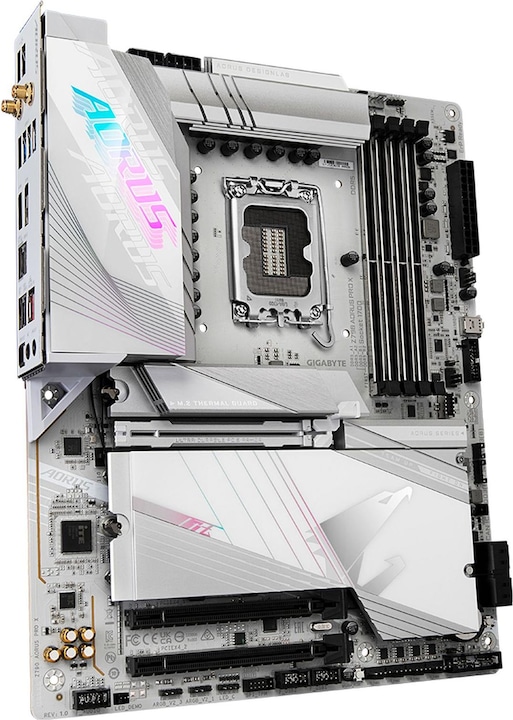

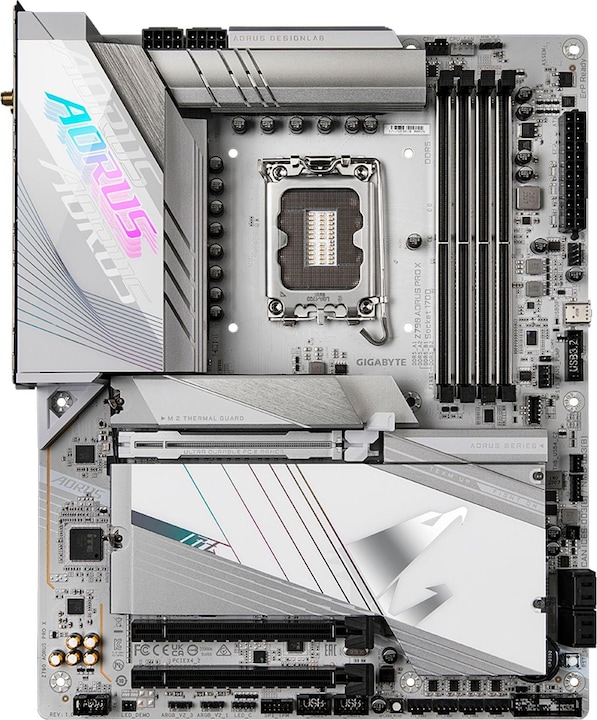

Gigabyte Z790 AORUS Pro X
LGA 1700, Intel Z790 Express, ATXNur 3 Stück an Lager
Produktinformationen
Gigabyte Z790 AORUS PRO X - Motherboard - ATX - LGA1700-Sockel - Z790; Produkttyp: Motherboard - ATX; Chipsatz: Intel Z790; Prozessorsockel: 1 x LGA1700-Sockel; Kompatible Prozessoren: (unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation); Max. RAM-Größe: 192 GB; Unterstütztes RAM: 4 DIMM-Steckplätze - DDR5, non-ECC, ECC (Betrieb in Nicht-ECC-Modus), ungepuffert; Massenspeicher-Schnittstellen: 4 x SATA-600 (RAID), 5 x M.2; USB-/FireWire-Anschlüsse: 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste); Audio: HD Audio (8-Kanal); LAN: 5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i3 14th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 13th Gen, Core i7 14th Gen, Pentium Gold |
Arbeitsspeichertyp | DDR5-RAM |
Anzahl Speichermodule (RAM) | 4 x |
Interne Anschlussmöglichkeiten | M.2 PCIe (5x), S-ATA III (4x) |
Kabellose Übertragung | Bluetooth, WLAN |
Mainboard Features | Front Panel Audiostecker, Temperatur Sensor Anschlüsse, Trusted Platform Module |
Artikelnummer | 38866608 |
Hersteller | Gigabyte |
Kategorie | Mainboard |
Herstellernr. | Z790 AORUS PRO X |
Release-Datum | 27.9.2023 |
Verkaufsrang in Kategorie Mainboard | 215 von 888 |
Formfaktor | ATX |
Sockel | LGA 1700 |
Chipsatz | Intel Z790 Express |
Mainboard Features | Front Panel Audiostecker, Temperatur Sensor Anschlüsse, Trusted Platform Module |
Betriebssystem Kompatibilität | Windows 11 Home |
Kabellose Übertragung | Bluetooth, WLAN |
WLAN Standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i3 14th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 13th Gen, Core i7 14th Gen, Pentium Gold |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Pins | 288 x |
Anzahl Speichermodule (RAM) | 4 x |
Max. Speicher (RAM) | 192 GB |
Arbeitsspeicher Chip | DDR5 |
Max. RAM OC | 8266 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Arbeitsspeichertyp | DDR5-RAM |
RAM-Puffer | unbuffered |

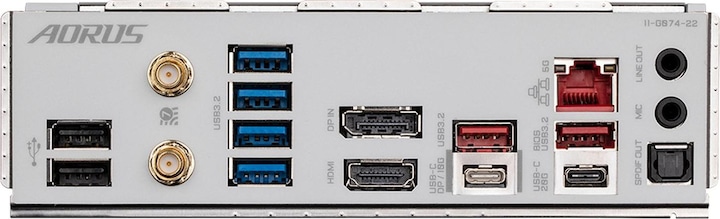

Video-Anschlüsse | DisplayPort (1x), HDMI (1x) |
Video-Anschluss Version | Displayport 1.2, HDMI 2.1 |
Multi-GPU Technologie | AMD CrossfireX |
Netzwerk-Anschlüsse | RJ45 (1x) |
Ethernet Controller Marke | Realtek |
Max. Port Geschwindigkeit | 5 Gbit/s |
Chip | Realtek ALC1220-VB |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | Klinke 3.5mm (2x), Optical TOSLINK (1x) |
RAID Konfiguration | 0, 1, 10, 5 |
Interne Anschlussmöglichkeiten | M.2 PCIe (5x), S-ATA III (4x) |
Erweiterungs-Slot | PCI Express x16 (1x), PCI Express x4 (1x) |
PCI Express Version (max.) | 5 |
Anzahl Lüfter Stecker | 7 |
USB-Anschlüsse | USB-A, USB-C |
Genaue USB-Anschlüsse | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Strom Anschlüsse | 24-pin ATX, 8-pin PCI-E |
CO₂-Emission | |
Klimabeitrag |
Lieferumfang | Sata Kabel |
Länge | 305 mm |
Breite | 244 mm |
Höhe | 244 mm |
Gewicht | 1700 g |
Länge | 35.30 cm |
Breite | 27.40 cm |
Höhe | 9.30 cm |
Gewicht | 2.28 kg |
