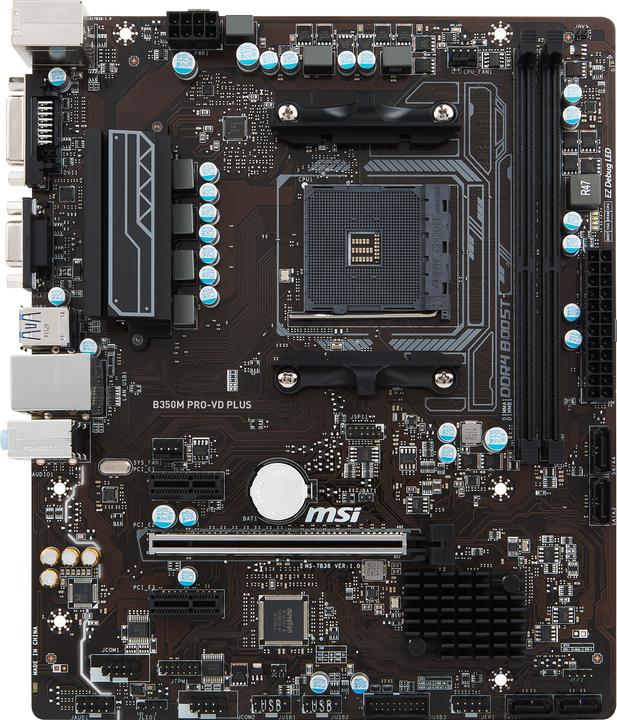

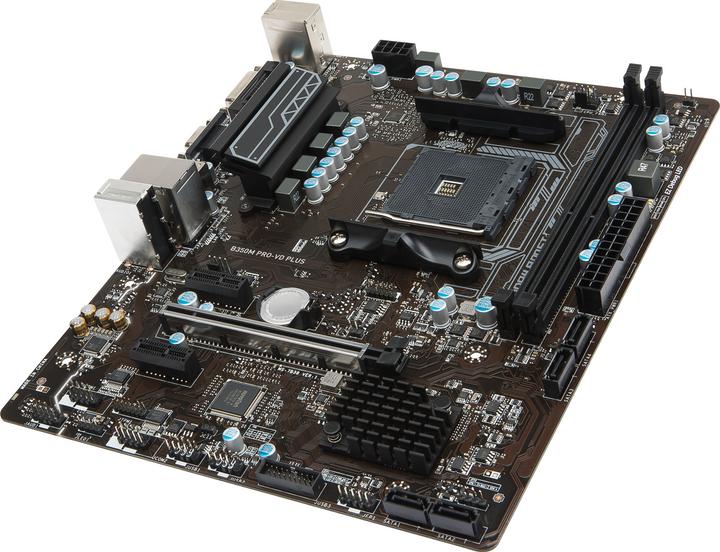

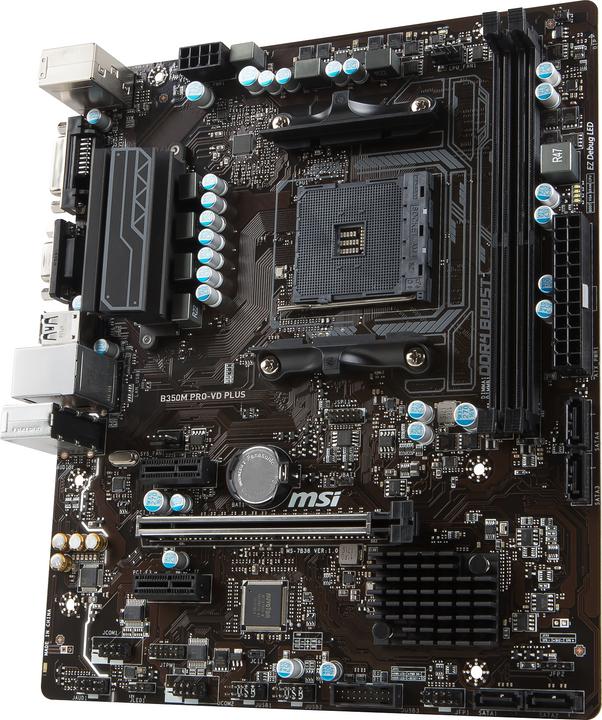

MSI B350M PRO-VD PLUS

AM4, AMD B350, mATX

MSI AM4 motherboard of the latest generation
Based on the AMD B350 chipset, the MSI B350M PRO-VD PLUS motherboard is designed for AMD Ryzen processors on AMD AM4 socket. It enables the installation of
a multimedia or office automation configuration at a lower cost. It contains high-quality components and features the latest Intel chip innovations. It also benefits from MSI's manufacturing quality and the brand's latest technological innovations in software and utilities. With support for PCI-Express 3.0 16x graphics cards, 6Gb/s SATA drives and DDR4 RAM, this motherboard is ideal for users looking for a powerful, cost-effective desktop/multimedia machine.
The new motherboards of the MSI PRO series are designed for the integration of all PCs. They are also designed to deliver reliable performance and intelligent business solutions that make your job easier. In summary, MSI PRO motherboards are synonymous with stability, efficiency and durability.

AMD rises again
A powerful processor is a gift from heaven for the most demanding players and users looking for performance and efficiency. AMD Ryzen processors are designed to meet these requirements. They are powerful, have many hearts, a high cache and moderate power consumption. And to respond to the lowest load, AMD Turbo Core technology will bring the core frequency to the maximum when you need it most! You'll understand that AMD Ryzen is a powerful new generation processor that can do it all.

cooling control
The fan connections on this motherboard automatically detect whether the fans are operating in DC or PWM mode to ensure optimum speed and noise reduction. The hysteresis phenomenon also allows fluidity in terms of fan performance and guarantees quiet cooling, regardless of the state of the system.

Die wichtigsten Spezifikationen auf einen Blick

Prozessor-Familie
A-Series, Ryzen 1st Gen, Ryzen 2nd Gen
Arbeitsspeichertyp
DDR4-RAM
Interne Anschlussmöglichkeiten
S-ATA III (4x)

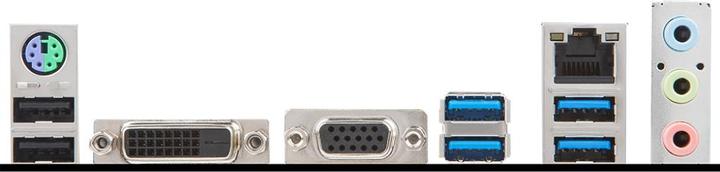

Anschlüsse Peripherie
PS/2 Combo, USB 2.0 Typ-A (2x), USB 3.0 Typ-A (4x)
Artikelnummer
6521680

Allgemeine Informationen

Hersteller
Kategorie
Mainboard
Herstellernr.
7B38-004R
Release-Datum
04.09.2017
Externe Links

Mainboard Eigenschaften

Mainboard Formfaktor
Micro ATX (mATX)
Prozessorsockel
AM4
Chipsatz
AMD B350
Mainboard Features
Front Panel Audiostecker
Anschlüsse Peripherie
PS/2 Combo, USB 2.0 Typ-A (2x), USB 3.0 Typ-A (4x)

Prozessor

Prozessor-Familie
A-Series, Ryzen 1st Gen, Ryzen 2nd Gen

Arbeitsspeicher

Arbeitsspeicher Formfaktor
DIMM
Anzahl Pins
288 x
Anzahl Speichermodule (RAM)
2 x
Max. Speicher (RAM)
32 GB
Arbeitsspeicher Chip
DDR4-2666
Max. RAM OC
3200 MHz
Unterstützte Arbeitsspeichergeschwindigkeit
1866 MHz, 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz
Arbeitsspeichertyp
DDR4-RAM
RAM-Puffer
unbuffered
Channel Architektur
2

Grafik Eigenschaften

Video-Anschlüsse
VGA (1x)

Netzwerk

Netzwerk-Anschlüsse
RJ45 (1x)
Ethernet Controller Marke
Realtek
Ethernet Controller
Realtek 8111H
Max. Port Geschwindigkeit
1 Gbit/s

Audio

Chip
Realtek ALC887
Audiokanal
7.1 Kanal
Audio-Anschlüsse
Klinke 3.5mm (3x)

Interne Schnittstellen

Interne Anschlussmöglichkeiten
S-ATA III (4x)
Erweiterungs-Slot
PCI Express x1 (2x), PCI Express x16 (1x)
PCI Express Version (max.)
3
Anzahl Lüfter Stecker
2

Energieversorgung

Strom Anschlüsse
24-pin ATX, 8-pin ATX 12V

Lieferumfang

Lieferumfang
Gebrauchsanleitung, S-ATA Kabel

Produktdimensionen

Länge
244 mm
Breite
206 mm
Höhe
206 mm
Gewicht
1000 g

Verpackungsdimensionen

Länge
26.30 cm
Breite
26 cm
Höhe
5.70 cm
Gewicht
800 g
