Hersteller Serie = DFM
Ausführung = Zweifach
Stangen = Ein
Bohrung = 12mm
Hub = 20mm
Betriebsdruck max. = 10 bar
Kraft bei 7 bar = 51 (Retract) N @ 6 bar, 68 (Extend) N @ 6 bar
Endlagendämpfung = Elastomer
Anschlussverbindung = M5
Abmessungen = 69 x 60 x 28mm
Gewicht = 340g
Betriebstemperatur max. = +60°C
Länge = 69mm
Höhe = 28mm

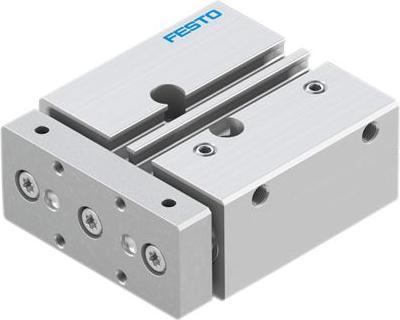

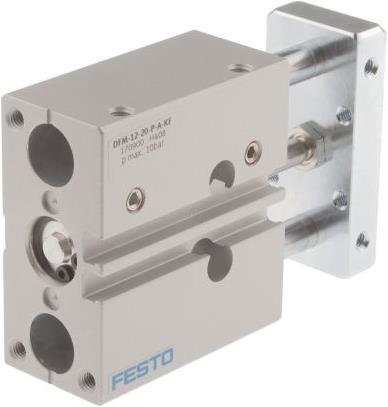

DFM Pneumatic Guided Cylinders - Ball Bearing. Festo DFM series pneumatic guided cylinders are double acting drive and guide unit in a single housing. Recirculating ball bearings drive the guide rods making it ideal for applications where torque loads are present. Designed for high load pneumatic applications such as clamping, stopping, material handling and lifting. The sturdy and precise aluminium construction is maintenance free and highly resistant to torque and lateral external forces. A compact design incorporates the piston rod as part of the guide body. The DFM series of guided actuators have flexible cushioning plates to reduce noise during operation and increase service life. Integrated slots on the actuator body allow for incorporating proximity sensors to measure the linear motion of the piston. Air supply ports on both the top and side of the cylinder provide flexible positioning options. Application Examples. Clamping The guided drive is perfectly suited to clamping components for reliable further processing. Lifting The guided cylinders effortlessly transports and lifts loads powerfully and dynamically. Stopping Loads of up to 150 kg are stopped reliably and safely, making the guided drive a resilient and sturdy stopper cylinder. Features and Benefits. Drive and guide unit in a single housing Recirculating ball bearings for applications involving torque loads Supply ports on the top and side of the cylinder for flexible mounting options Compact rigid construction High resistance to torques and lateral forces Maintenance free Flexible cushioning plates reduce noise during operation and increase service life.
