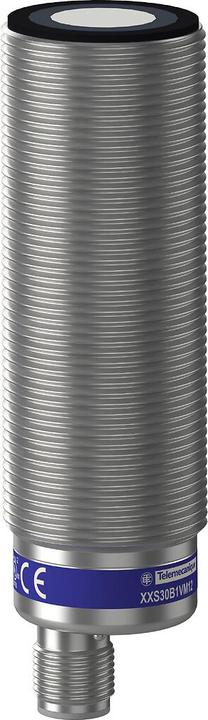

Schneider Electric M30 ultrasonic sensor with metal housing XXS30B1VM12
Product details
Schneider Electric Ultrasonic Sensor XXS30B1VM12
Manufacturer: Schneider Electric
Designation: Ultrasonic Sensor SN=1M, 0-10V, M12
Type: XXS30B1VM12
Analog Output Configuration: 0 V ... 10 V
Electrical Connection Type: M12 Connector
Blind Zone: 155 mm
Sensor Width: 30 mm
Sensor Height: 30 mm
Sensor Length: 75.75 mm
Sensor Diameter: 30 mm
Adjustment Method: Other
Measuring Range Length: 155..1000 mm
Protection Class (IP): IP67
Ambient Temperature: -25..70 °C
Supply Voltage: 24 V
Relative Repeatability Accuracy: 0.1 %
Voltage Type: DC
Synchronization Possible: Yes
Material of the Sensor's Active Area: Other
Housing Material: Brass
Schneider Electric Ultrasonic Sensor XXS30B1VM12: Additional Details
Ultrasonic sensor with a housing diameter of 30 mm. Metal construction. Connection via M12 connector, range of 1 m. Analog output 0-10 V.
Pushbutton + switch type | Button |
Item number | 33595213 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | XXS30B1VM12 |
Release date | 17.5.2023 |
Pushbutton + switch type | Button |
Country of origin | USA |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Adjustment method: other, Ambient temperature: -25..70 °C, Analogue output 0-10 V, Connection via M12 plug connection, Housing material: brass, in metal design, Material of the active surface of the sensor: other, Measuring range length: 155..1000 mm, Protection class (IP): IP67, Range 1m, Supply voltage: 24 V, Ultrasonic sensor with 30 mm housing diameter |
