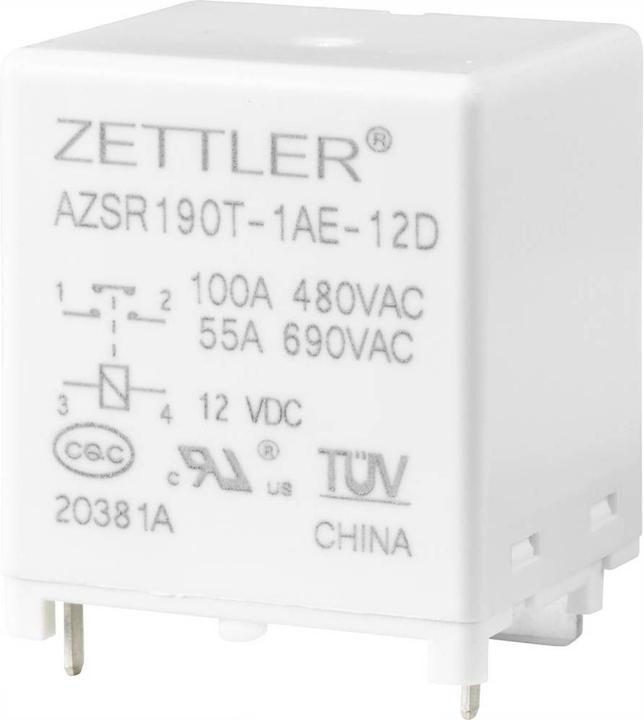

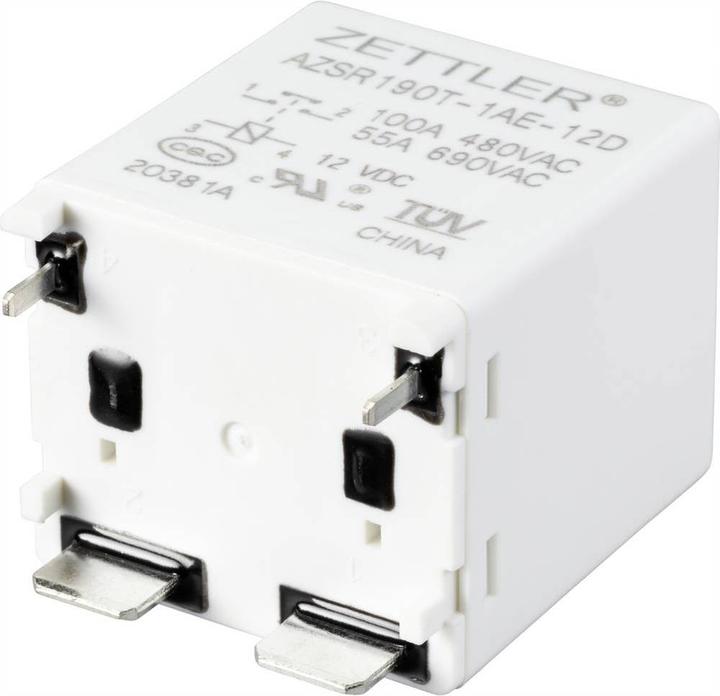

100 A miniature power relay, 12 V

Price in EUR including VAT, plus shipping
Ratings
BrandMore from Zettler
Delivered between Wed, 11.6. and Fri, 13.6.
More than 10 items in stock at supplier

Product details

The Zettler 100 A miniature power relay is a high-performance relay designed for applications with a nominal voltage of 12 V/DC. With a maximum switching power of 48,000 VA and a switching current of up to 100 A, this relay is ideal for demanding electrical controls. It features a normally closed contact and is equipped with a silver-tin oxide contact material that ensures high reliability and durability. The relay is suitable for use in a wide temperature range of -40 °C to +85 °C, making it versatile. With a compact design and a weight of only 85 g, it is easy to integrate and install. The high insulation voltage of 800 V/AC provides additional safety in applications.

  • Maximum switching power of 48,000 VA
  • High insulation voltage of 800 V/AC
  • Temperature range of -40 °C to +85 °C
  • Contact material made of silver-tin oxide for durability
  • Compact design with a weight of 85 g.

Key specifications

input voltage
12 V
Scope of delivery
1 pc.
Output voltage
13.20 V
Output current type
DC
Electric current output
100 A
Relay type
Power contactor
Item number
21605849

General information

Publisher
Zettler
Category
Relays
Manufacturer no.
AZSR190T-1AE-12D
Release date
3.8.2022
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
input voltage
12 V
Output voltage
13.20 V
Electric current output
100 A
Output current type
DC
Resistor
75 Ω (ohm)
Manufacturer Type
AZSR190T-1AE-12D

Smart home features

Smart Home
Not compatible

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
38 mm
Width
33 mm
Height
43 mm
Weight
85 g
