Range = AF Range

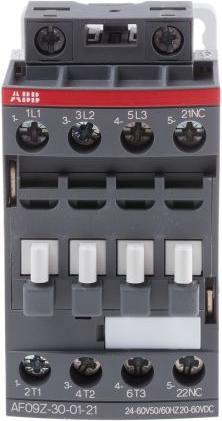

Series = AF09
Number of poles = 3
Coil voltage = 60 V dc
Rated contact current = 7 A
Nominal contact voltage = 690 V ac
Contact configuration = 3 NO contacts
Number of auxiliary contacts = 1
Power = 4 kW
Connection type = screw mounting
width = 45mm
Operating temperature max. = +70°C

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1. NF series contactors, 3-pole. The AF09-AF38 contactors have an electronic coil interface for a wide control voltage range Ucmin - Ucmax. Only four coils cover the control voltages of 24 → 500 V ac or 20 → 500 V dc. AF.Z contactors with a Z-coil allow direct control via a 24 V dc, 500 mA PLC output and provide lower holding coil power consumption. AF40-AF96 contactors are mainly used for the control of 3-phase motors and power circuits up to 690 V ac and 220 V dc. These contactors have a block design with 3 main poles. AF116-AF140 contactors are mainly used for the control of 3-phase motors and power circuits up to 690 V ac, the AF146 up to 1000 V ac. AF190-AF370 contactors are mainly used to control 3-phase motors and power circuits up to 1000 V ac. These contactors have a block design with 3 main poles. AF contactors have integrated overvoltage protection and do not require any additional overvoltage protection.
