Depth: 113.4 mm

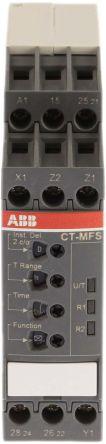

UL 508, CAN/CSA C22.2 No. 14, GL, GOST, CB Scheme, CCC, CE, and C-Tick. Multifunction timer series CT-MFS. The CT-MFS series includes a range of electronic multifunction timers from the CT-S series. The series offers up to 10 timing control functions, 10 time ranges, and a nominal control supply voltage that allows for global use regardless of the supply voltage. All electronic timers in the CT-S series are available with two different terminal connection designs. You can choose between the proven screw connection technology (two-chamber cage terminal blocks) and the completely tool-free Easy-Connect technology (plug connections). This is indicated by a "P" or an "S" at the end of the respective manufacturer's part number. Nominal control supply voltage: 24 to 240 V AC/DC. Timer functions: ON delay, OFF delay with auxiliary voltage, pulse ON, pulse OFF with auxiliary voltage, symmetrical ON and OFF delay, blink start with ON, blink start with OFF, star-delta switching with pulse, pulse former, ON/OFF function. 10 selectable time ranges between 0.05 s and 300 h. Control input with voltage-free triggering to start the timing control and/or to stop/pause the timing control. Connection for remote control potentiometer. Precise adjustment via controls on the front. Screw connection technology or Easy-Connect technology available. Housing material for the highest fire protection class. Tool-free mounting and dismounting on DIN rail. 2 changeover contacts (1-pole switches). Width: 22.5 mm (0.89"). 3 LEDs for status indication.
