Forward voltage max. = 24 V
Input current max = 5.4 mA
Isolation voltage = 2.5 kVrms
Mounting type = DIN rail
Operating temperature min. = -20°C
Operating temperature max. = +70°C
Length = 70 mm
Width = 6 mm
Depth = 75 mm
Operating temperature range = -20 to +70°C

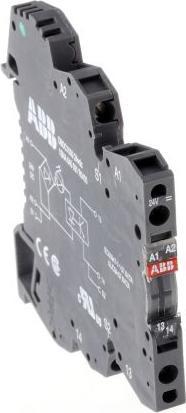

Interface relays - R600 series. Interface relays and optocouplers are useful for connecting sensors and actuators to the PLC via conventional wires in the process. Interface modules provide both voltage and current level adjustment and isolation. Integrated RC circuits increase contact life. Screw or spring terminals are available. Compact design with a width of 6 mm or 12 mm. LED for relay status. Holes to accept 2 mm test probes to simplify measurements.
