Resistance: 100Ω
Power: 100W
Series: HS100
Housing shape: Aluminum housing
Tolerance: ±5%
Technology: Coiled
Connection type: Axial
Temperature coefficient max: -100ppm/°C
Temperature coefficient max: +100ppm/°C
Temperature coefficient: ±100ppm/°C
Dimensions: 24.1 x 88 x 47.5mm

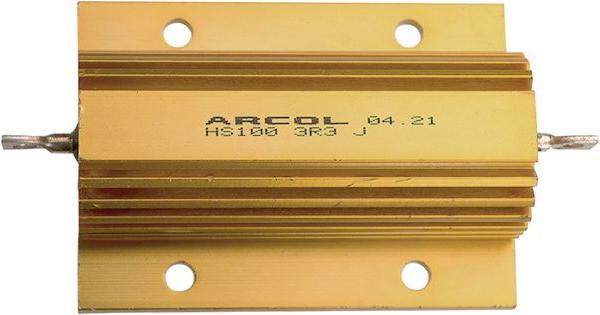

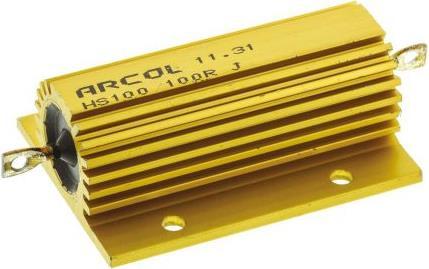

In order to achieve the given maximum rated performance of this power resistor, it is designed to be mounted directly on a suitable heat sink with a thermal connection. This power wirewound resistor in an aluminum case is rated for 100W and is part of the HS series. These resistors are manufactured according to the requirements of MIL 18546, IEC 115, and RoHS. The HS Series high power aluminum packaged resistors offer an unmatched balance of pulse current withstand and low volume. The advanced design optimizes stability, linearity, and reliability, making HS Series resistors suitable for many applications.

Features:

• Compact size for rated performance
• Winding design maximizes pulse load capability
• Excellent load resistance

Scope of application:

• Braking resistor
• Inrush current limiter
• Inverter/converter
• Clamping diode
• Balancing resistor.
