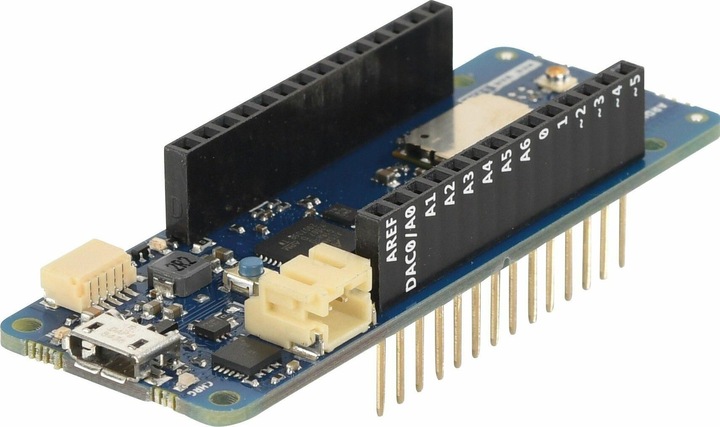

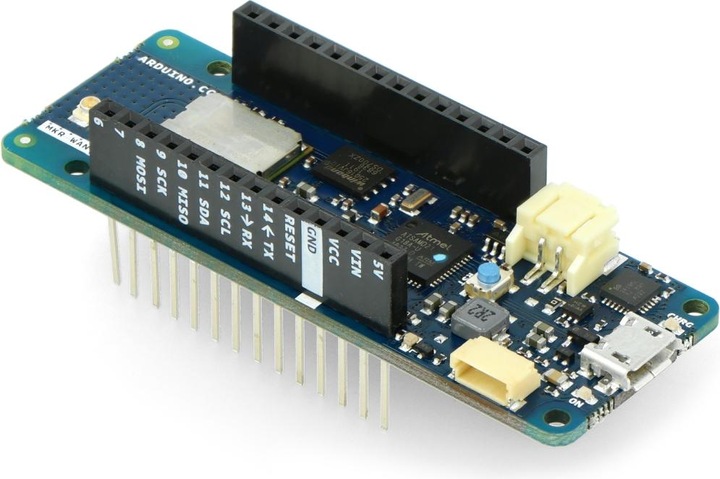

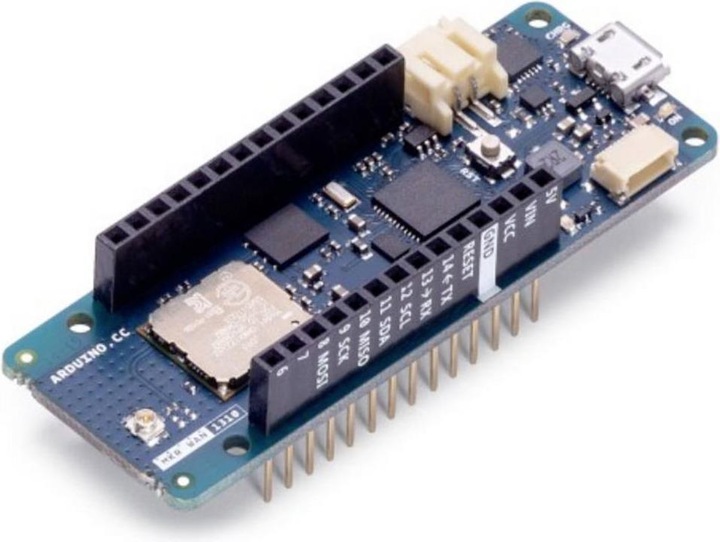

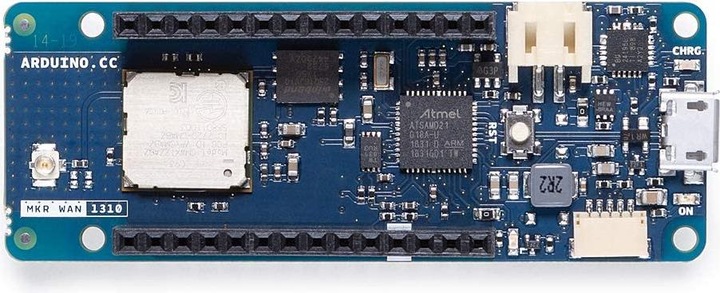

Arduino Expansion board MKR WAN 1310 (LoRa)

Price in EUR including VAT
Delivered between Tue, 13.5. and Wed, 14.5.
More than 10 items in stock at supplier
free shipping

Product details

This open-source board can connect to the Arduino IoT Cloud, your own LoRa® network using the Arduino LoRa® PRO gateway, an existing LoRaWAN infrastructure such as The Things Network, or even other boards using Direct Connectivity mode.The MKR WAN 1310 brings a number of improvements over its predecessor, the MKR WAN 1300. While still based on the Microchip® SAMD21 low-power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family's signature crypto chip (the ECC508), the MKR WAN 1310 features a new battery charger, a 2 MByte SPI flash, and improved regulation of the board's power consumption.The latest modifications have significantly improved the MKR WAN 1310's battery life. With proper configuration, the power consumption is now only 104uA! It is also possible to power the board via the USB port (5V).Data logging and other OTA (Over The Air) functions are now possible as the board has a 2 MByte flash memory. This new feature allows you to transfer configuration files from the infrastructure to the board (2 MByte flash), create your own script commands, or simply store data locally to send when the connection is best. The MKR WAN 1310's crypto chip provides additional security by storing credentials and certificates in the embedded Secure Element.

Key specifications

Development board type
Kit
Memory
0.03 MB
Processor family
ARM
Processor type
SAMD21
Clock speed
0.03 MHz
Item number
16519859

General information

Manufacturer
Arduino
Category
Development boards + Kits
Manufacturer no.
ABX00029
Release date
30.8.2021

Development board properties

Development board type
Kit
Processor family
ARM
Processor type
SAMD21
Clock speed
0.03 MHz
Memory
0.03 MB
Flash memory
2000 kB

Power supply

Power supply
Electrical connection
Operating voltage
3.30 V

Connections

USB ports
USB-A

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

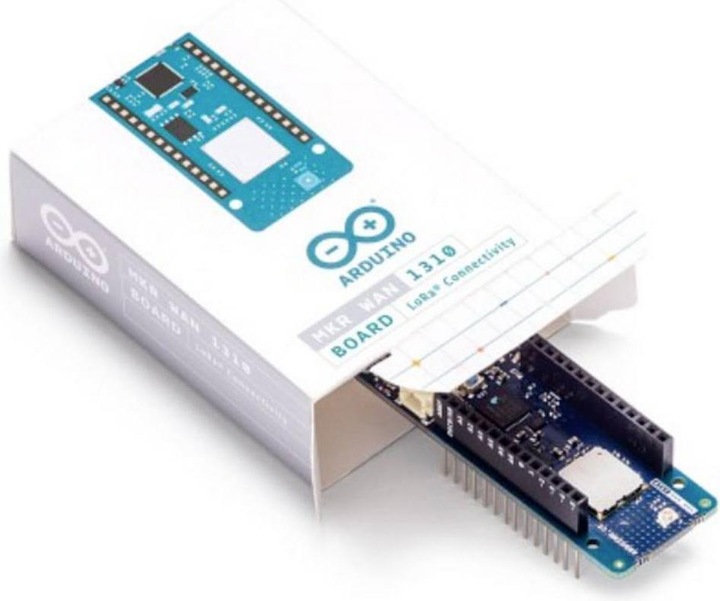

Arduino® MKR WAN 1310 (LoRa)

Product dimensions

Length
67.64 mm
Width
25 mm
Height
67.64 mm
Weight
32 g

Package dimensions

Length
8.80 cm
Width
6.70 cm
Height
2.40 cm
Weight
14 g
