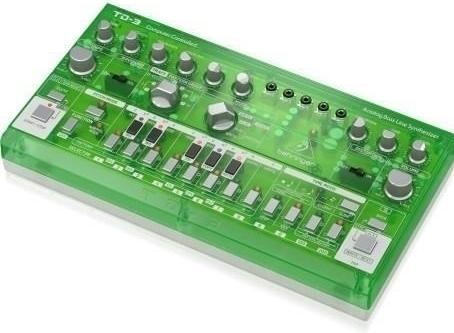

Analog bassline synthesizer with VCO, VCF, 16-step sequencer, distortion effects, and 16-voice poly chain. Produced only from 1981 to 1984, the Roland TB-303 was an enormous commercial flop as a bass guitar replacement, but soon found its place as one of the most popular synthesizers for what became known as Electronic Dance Music (EDM). The TD-3-LM is an extremely affordable and faithful homage to the legendary synthesizer that birthed house music, as well as a brand new distortion circuit that allows you to create virtually any sound with incredible finesse and ease. With its purely analog signal path, 16-step sequencer, and authentic VCO, VCF, and VCA filters, the TD-3-LM is sure to become one of your favorite synthesizers. Great care has been taken in the construction of the TD-3-LM, including the faithful VCO, VCF, and VCA designs and purely analog circuits with customized transistors. This highly concentrated attention to detail gives the TD-3-LM its ultra-flexible sound shaping capability, covering everything from super fat basses and lead tones to stunning effects – all the way to the otherworldly sounds of your imagination.

• Number of voices: Monophonic
• Type: Analog
• Oscillators: 1
• VCF: 1 Low-pass
• Envelopes: 1
• Power input: Connect DC input
• Power switch: Push button on/off
• MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
• USB (MIDI): USB 2.0, Type B
• Outputs: Line output: ¼" TRS, unbalanced, max. +8 dBu
• Output impedance: 1.5 kΩ
• Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 kHz, 1% THD)
• Headphone output impedance: 15 Ω.
