Benning Measurement Adapter 044131

Manufacturer: Benning
Description: Measurement Adapter
Protection Category: Protection Cat.
Type: 044131
Adapter Type: Electrical
Usable with a Multimeter: No
Usable with a Current Clamp: No
Usable with a Device Testing Equipment: Yes
Usable with an Installation Tester: No
Usable with a Ground Resistance Tester: No
Usable with a Machine Tester: No
Usable with a Power Analyzer: No
Usable with a Process Calibrator: No
Usable with an Environmental Measurement Device: No
Usable with a Scopemeter: No
Usable with a Thermal Imaging Camera: No
Usable with a Vibration Meter: No
Usable with an Ultrasonic Leak Detector: No
Usable with Laser Devices: No
Suitable for E-Mobility Testing: No
Suitable for Photovoltaic Testing: No
Measurement Circuit Category: CAT II
Max Voltage Measurement Circuit Category: 300 V
Connector Type Input: BE/DE/NL/RU Protective Contact CEE 7/3 (Type F)
Connector Type Output: BE/DE/NL/RU Protective Contact CEE 7/3 (Type F)
Protection Class (IP): IP40
With Case/Bag: No
Pollution Degree: 2
Operating Temperature: 0..35 °C
Length: 260 mm
Width: 110 mm
Height: 360 mm

Benning Measurement Adapter 044131: Additional Details

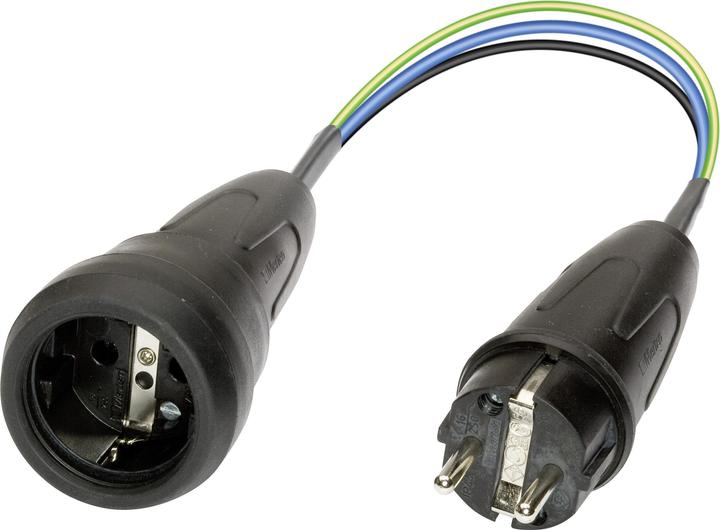

Measurement adapter with 16 A protective contact. For single-phase consumers. For measuring differential, protective conductor, and load current. Conductors are individually led out and double insulated. 16 A protective contact coupling to 16 A protective contact plug. Other plug technology. Material of insulation: other. Measurement circuit category Cat II.
EAN: 4014651441316.
