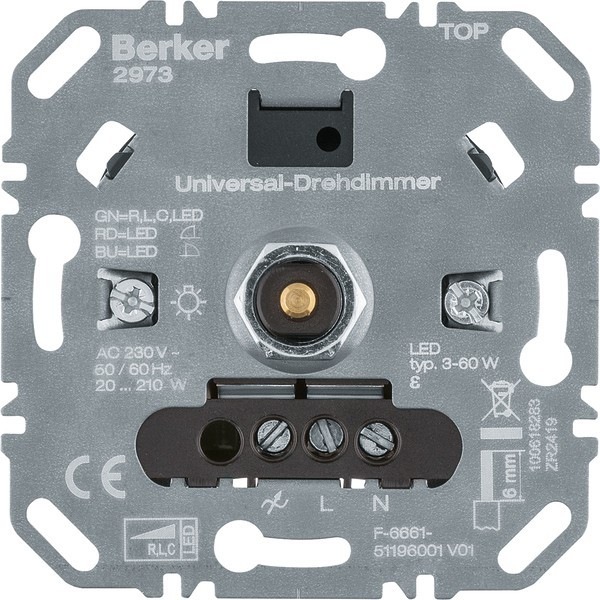

Berker Uni rotary dimmer (R, L, C, LED) 2973

Manufacturer: Berker
Designation: Uni rotary dimmer (R, L, C, LED)
Light control type: 2973
Composition: Basic element
Operating mode: Rotary/push button
App control via Bluetooth: No
Dimming phase control: Yes
Dimming phase section: Yes
Series dimmer: No
Load type: Universal and LED
Retrofit extension unit input: No
Light value memory: Yes
Usable with button: No
Can be used with motion detector: No
Can be used with presence detector: No
Can be used with timer: No
Can be used with radio button: No
Can be used with IR button: No
Mounting type: Flush-mounted
Mounting type: Claw fixing
Material: Other
Material quality: Other
Surface protection: Untreated
Transparent: No
Suitable for protection class (IP): IP20
Rated voltage: 230 V
Frequency: 50-60 Hz
Connection type: Screw terminal
Wire cross-section: 0.5-4 mm²
Device width: 71 mm
Device height: 71 mm
Device depth: 43 mm
Min. depth of device box: 27 mm

Berker universal rotary dimmer (R, L, C, LED) 2973: further details
Universal rotary dimmer (R, L, C, LED), light control. Universal rotary dimmer with soft switch, brightness memory, lamp-protecting soft start, phase control depending on type of load (self-learning), incremental encoder, short-circuit-proof and overload-proof (electronic fuse), with screw terminals. Note: Do not connect inductive and capacitive loads together. Voltage test possible without dismantling. EAN: 4011334510079.
