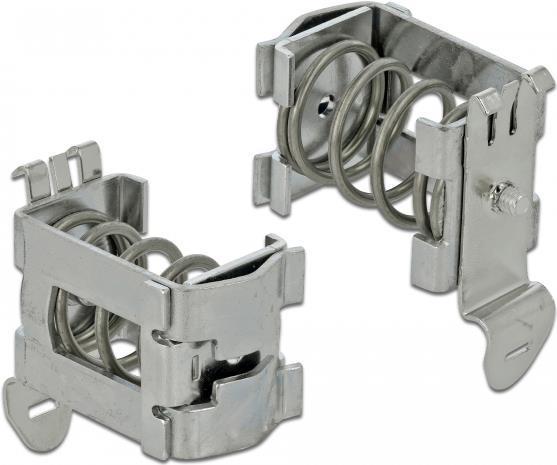

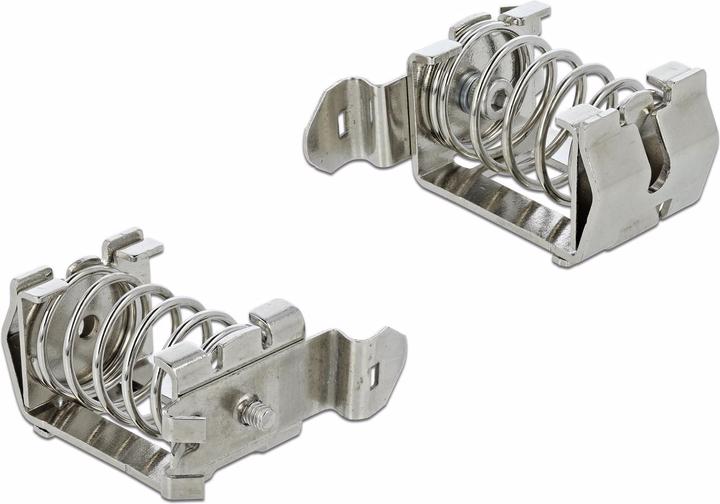

Shield clamp for DIN rail - Cable diameter 10 - 20 mm

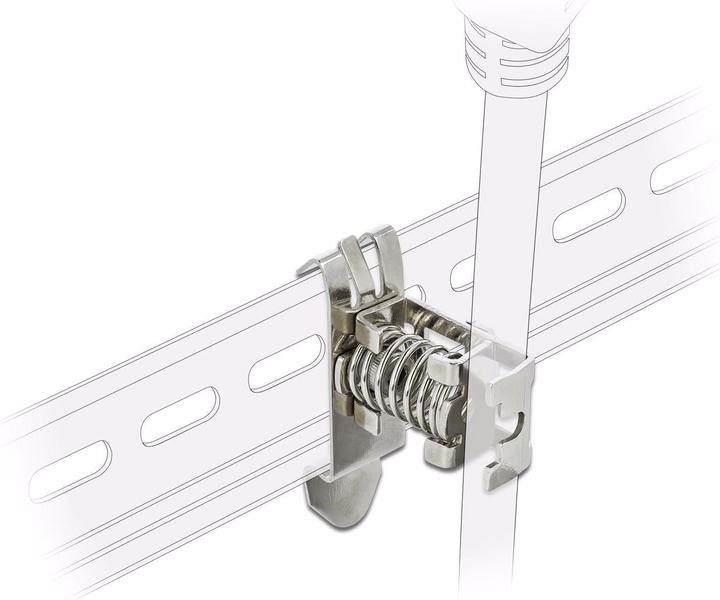

With this shield clamp from Delock, a cable with a diameter of 10 - 20 mm can be attached to a 35 mm wide DIN rail. Additionally, the clamp can also be used as an EMC shield, directing unwanted electrical or electromagnetic effects away from the DIN rail.

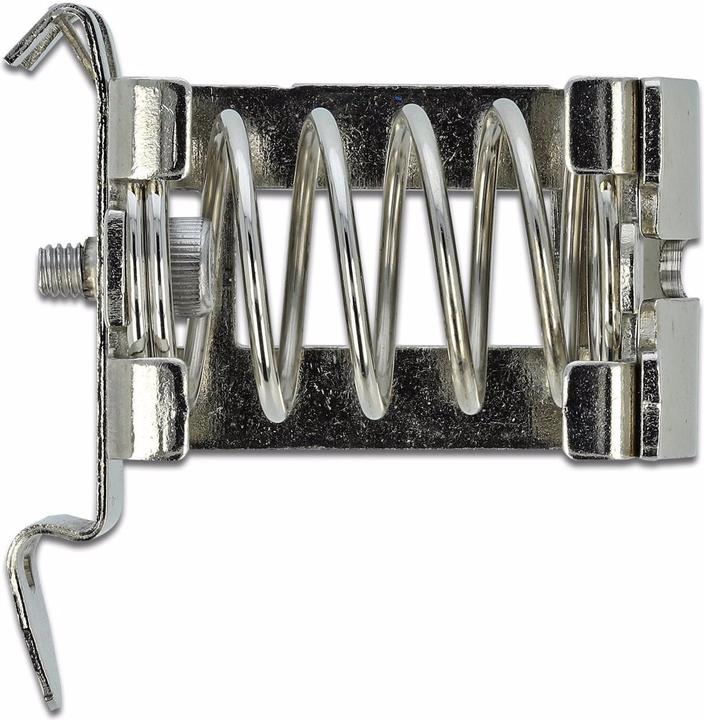

To attach a cable to the clamp, the spring must be pressed down with a tool, such as a screwdriver. Once a cable is secured in the clamp, it can be best released by pressing the spring down with the cable. For mounting on the DIN rail, the shield clamp can also be screwed in place, requiring a size HX3 hex key.

DIN rail mounting: 35 mm
Cable diameter: min. 10 mm; max. 20 mm
Material: Metal
Dimensions (LxWxH): approx. 40 x 26 x 24 mm.
