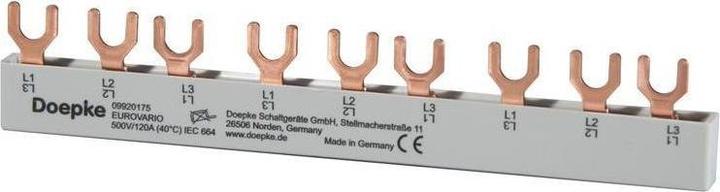

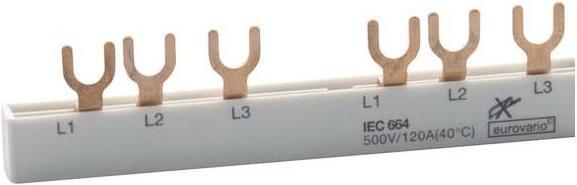

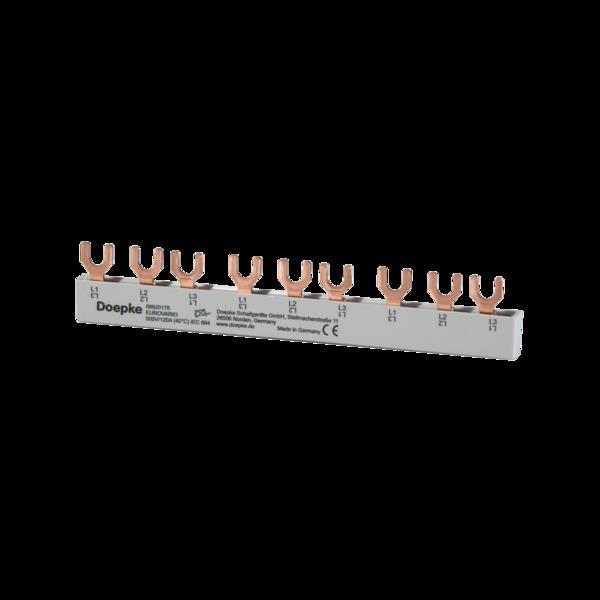

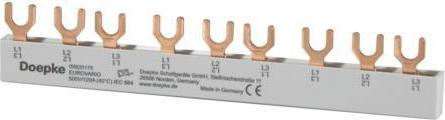

Doepke Phase Rail EV-S G 3.9.120

Manufacturer: Doepke
Designation: Phase Rail
Type: EV-S G 3.9.120
Number of Phases: 3
Number of Poles: 3
Suitable for Number of Devices: 9
Division Size: 17.8 mm
Cross Section: 10 mm²

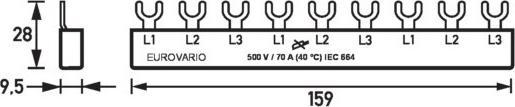

Length: 159 mm
Width in Division Units: 9
Rated Continuous Current Iu: 63 A
Type of Electrical Connection: Fork
Insulated: Yes
Rated Impulse Voltage: 4.5 kV
Conditional Rated Short-Circuit Current Iq: 15 kA
Max. Rated Operating Voltage Ue: 500 V
Rated Short-Time Current Strength Icw: 15 kA
Suitable for Devices with Neutral Conductor: No
Suitable for Devices with Auxiliary Switch: No
Color: Gray

Doepke Phase Rail EV-S G 3.9.120: Additional Details
These components for wiring protective switches in industrial, commercial, and residential electrical distribution boards significantly reduce installation effort. The pre-cut busbars are suitable for the supply-side connection of residual current circuit breakers, circuit breakers, and RCD/MCB combinations at the bottom of the devices. The rails are designed in fork shape and are available in a wide variety of one to four-pole versions (some with space for auxiliary switches). The touch protection EV-S BS covers unused connections.

Features:

• Usable for connecting residual current circuit breakers, circuit breakers, and RCD/MCB combinations
• Wide variety of options
• Significant time savings in wiring

Mounting Type: The rails are inserted into the upper or lower terminal blocks of the devices to be connected.

Areas of Application: Busbars of this series are used in conjunction with RCCB, MCB, and RCBO in power supplies for residential and purpose-built buildings as well as industrial facilities.

Notes: When feeding circuit breakers from above in combination with Doepke residual current circuit breakers, the connection rails EV-S G ANL (N left) or EV-S G ANR (N right) must be used.

EAN: 4014712045781.
