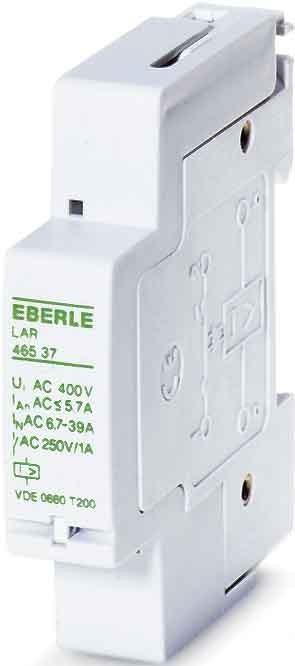

Eberle Controls Load Shedding Relay LAR 465 37

Manufacturer: Eberle Controls
Designation: Load Shedding Relay
Type: LAR 465 37
Rated Current: 6.7..39 A
Trigger Current: 45478 A
Max. Drop Delay: 20 ms
Max. Continuous Current: 43 A
Number of Contacts as Normally Open: 1
Rated Current (Control Contacts): 1 A
Max. Switching Voltage (Control Contacts): 400 V
Max. Switching Power (Control Contacts): 250 VA
Electrical Lifetime (Control Contacts): 100,000 Switching Cycles
Mechanical Lifetime (Control Contacts): 1,000,000 Switching Cycles
Max. Electrical Switching Frequency: 1800 c/h
Voltage Type: AC
Mounting Type: DIN Rail
Width in Division Units: 1
Installation Depth: 60 mm
Protection Class (IP): IP40

The load shedding relay LAR 465 37 is designed to reduce the required conductor cross-section for large consumers through mutual interlocking of loads. It is suitable for electronically controlled instantaneous water heaters and can be sealed. The installation is done on a mounting rail.
