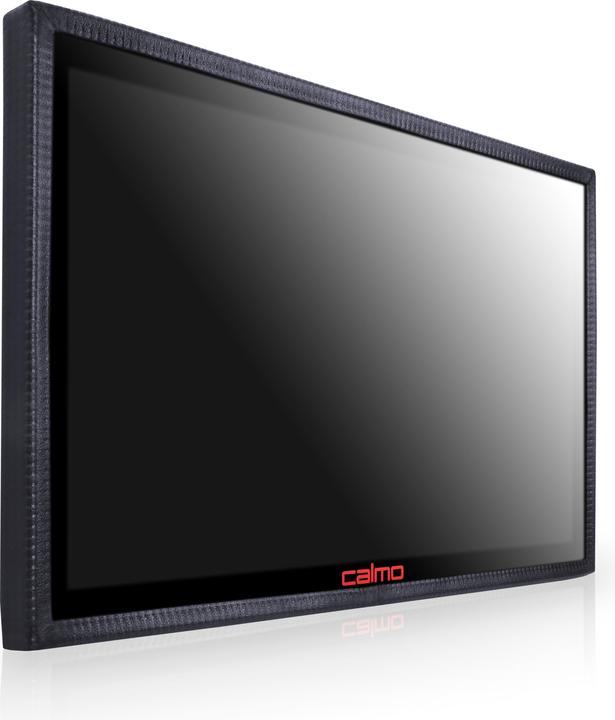

Exone Panel PC 21.5 inch Calmo Thin Client, VESA

Intel Celeron J4005, 4 GB, 120 GB, UHD Graphics 600
Currently out of stock

Product details

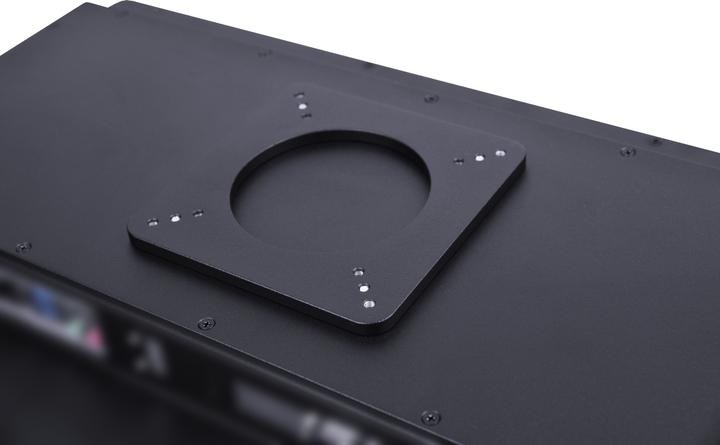

Efficient and robust input terminal with a modern design. The Calmo ThinClient Panel-PC impresses not only with its sensitive touch displays but also with its energy efficiency. It is suitable as a pure display solution for browser data or as a terminal for worker information, as well as for machine data collection and interactive digital signage applications. In the performance tier with Celeron and Pentium CPUs, the offering includes display sizes of 10.1", 15.6", 21.5", and 23.8", all in Full HD. The devices for VESA mounting are characterized by their contemporary design and relatively flat construction. Our Calmo Panel-PCs are passively cooled and therefore fanless, protected against water spray from the front and against dust from the back, and can be optimized for glove operation upon request. Additional interfaces, internal DC wide-range power supplies, and Wi-Fi are available upon request.

Key specifications

PC type
Desktop PC
Processor family
Celeron
Graphics card model
UHD Graphics 600
Video connections
DisplayPort (2x)
Exact USB ports
USB-A 2.0 (4x)
Network connections
RJ45 (1x)
Item number
35841729

General information

Manufacturer
Exone
Category
PC
Manufacturer no.
120348
Release date
25.5.2023

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
Desktop PC

Processor

Number of processors
1 x
Processor family
Celeron
Processor type
Intel Celeron J4005
Clock frequency
2 GHz
Max. turbo clock rate
2.70 GHz
Max. TDP
10 W
Number of processor cores
2 -Core
Cache
4 MB

Memory

Memory
4 GB
Memory configuration
1 x 4GB
Max. supported memory
16 GB
Memory type
DDR4-RAM
RAM speed
2400 MHz
Set clock frequency
2400 MHz
Memory form factor
SO-DIMM
Number of memory slots
1

Data storage overview

Disk type
SSD
Total capacity
120 GB
Form factor
2.5"

SSD properties

SSD capacity
120 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
120 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
UHD Graphics 600

Dedicated graphics card properties

Graphics chip (GPU)
Intel UHD Graphics
Graphics card model
UHD Graphics 600
Max. Video resolution
1920 x 1080 pixels

Network

Ethernet controller
Ethernet LAN
Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
Wi-Fi

Audio properties

Chip
Realtek ALC671

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x)
Video connections
DisplayPort (2x)
Network connections
RJ45 (1x)
Audio Connections
Audio Out (1x)
Data ports
PS/2 (4x)

Optical drive properties

Optical drive type
No drive

Power supply properties

Power supply
90 W

Display properties

Display size (inches)
21.50"
Image resolution
1920 x 1080 pixels
Screen surface
Anti-glare
Screen technology
LCD
Panel technology
TFT
Display functions
Touch screen

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
6.90 cm
Width
58.20 cm
Height
32.50 cm
Weight
11.50 kg
