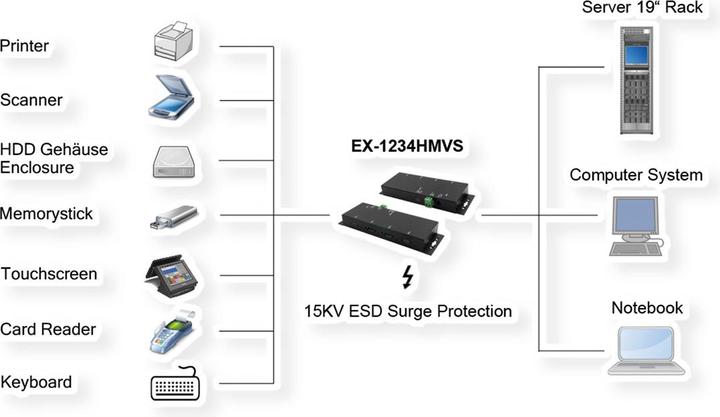

The EX-1234HMVS is a USB 3.2 Gen 2x1 metal hub that complies with the specifications of the Universal Serial Bus (USB) Revision 3.2 Gen2. It operates at a data speed of up to 10 Gbps. The hub features one USB-C upstream port and four downstream ports, including two USB-C ports for screw mounting and two USB-A ports. With the built-in RISC USB controller, the EX-1234HMVS supports simultaneous operation of devices at various speeds: SuperSpeed Plus (SS+), SuperSpeed (SS), High-Speed (HS), Full-Speed (FS), and Low-Speed (LS). It can be used in automation and office applications.

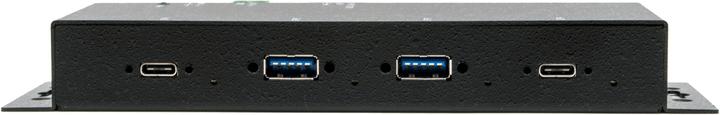

• USB 3.2 Gen 2x1 metal hub with two USB-C and two USB-A connectors
• 15 kV ESD surge protection for all four ports

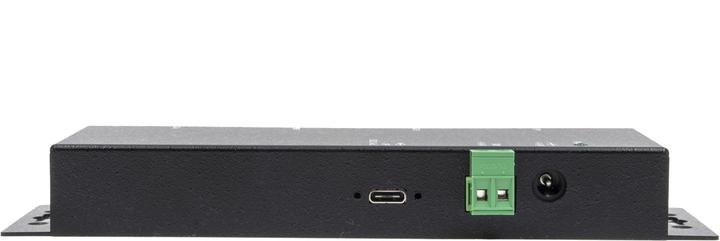

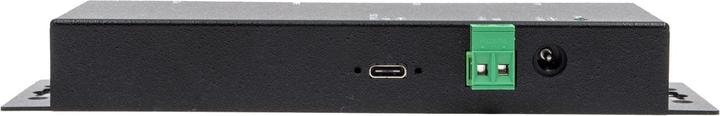

• Power supply from 7 to 24 V with DC jack or terminal block
• Automatically supports bus or self-power
• Compatible with all USB 1.1 to 3.0 / 3.1 Gen1 / 3.2 Gen2 peripherals
• Supports 1.5 A current on all four ports or 3 A current on a maximum of two ports
• Supports battery charging BC v1.2: SDP/CDP/DCP mode
• Metal housing for wall, desk, or rack mounting including DIN rail kit
• 1x LED voltage indicator
• Chipset: VIA VL822-Q8

Internal jumper for individual power control:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (self-power)

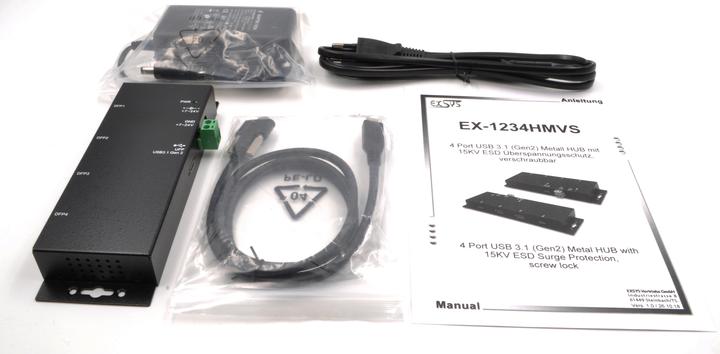

Delivery includes:
EX-1234HMVS, USB-C to USB-C cable 0.5 m, power supply 12 V/3 A, manual.
