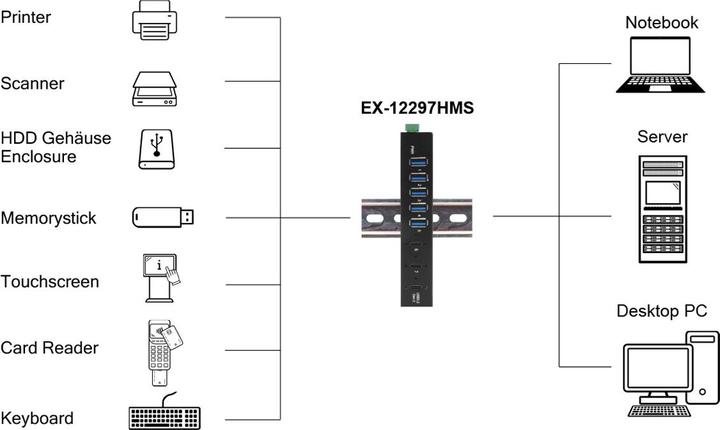

The EX-12297HMS is a rugged metal USB 3.2 Gen 2x1 hub for up to seven devices that can be wall-mounted or DIN-rail mounted. It connects to the host PC via a USB-C cable and provides two USB-C 3.2 Gen 2x1 ports and five USB-A 3.2 Gen 1 ports for end devices. The two USB-C ports offer excellent performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the five USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.5A per port with a maximum of 52W is available from the external power supply. This makes it easy to charge iPhone, iPad, smartphones and tablets. Power is supplied via the plug-in power supply unit supplied or an optionally available DIN-Rail power supply unit (self-power).

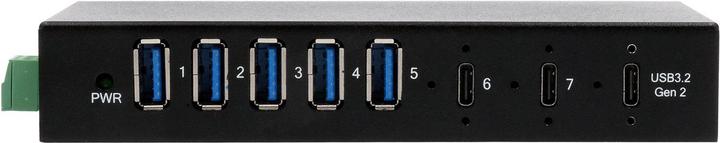

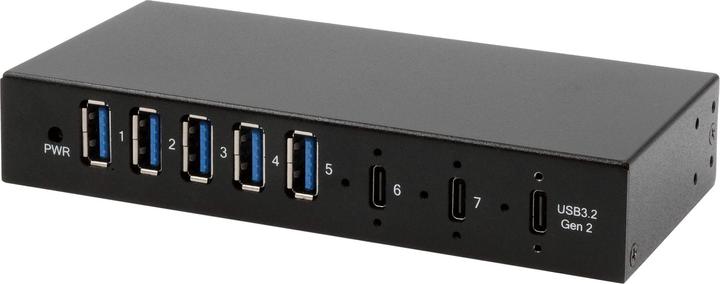

USB 3.2 metal HUB with Gen 2x1 and 5x USB-A Gen 1 downstream
15KV ESD surge protection for each output

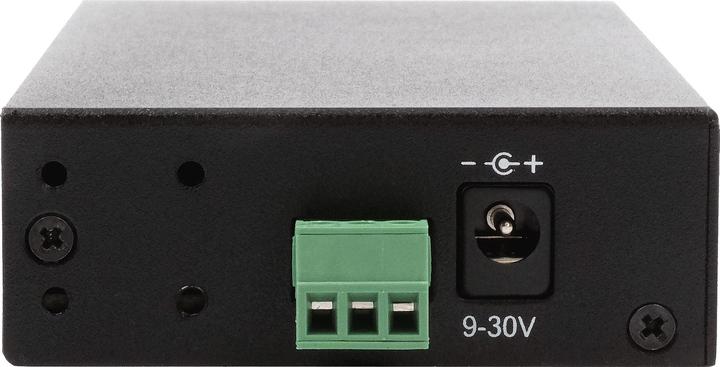

Power +9V up to +30V DC via Terminal Block or DC-Connector
Redundant power supply when using TB and DC jack.
Up to 2.5A per USB-port, total output power max. 52W
Automatic recognition the data transfer rate for the attached external devices

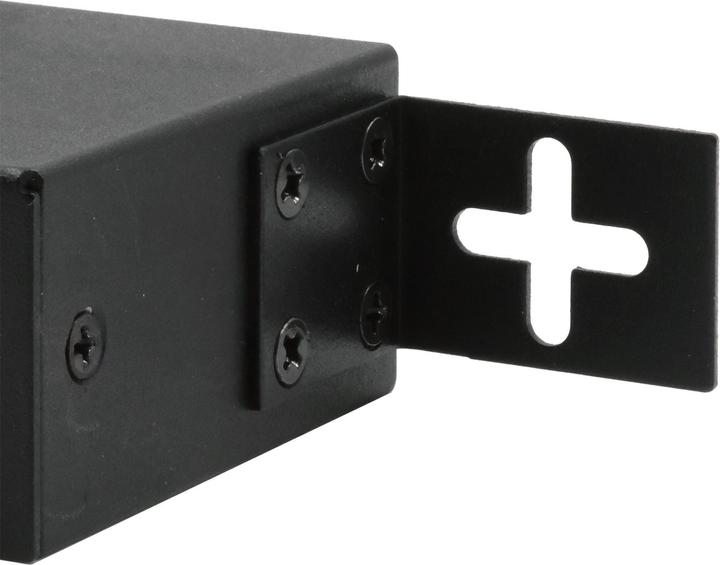

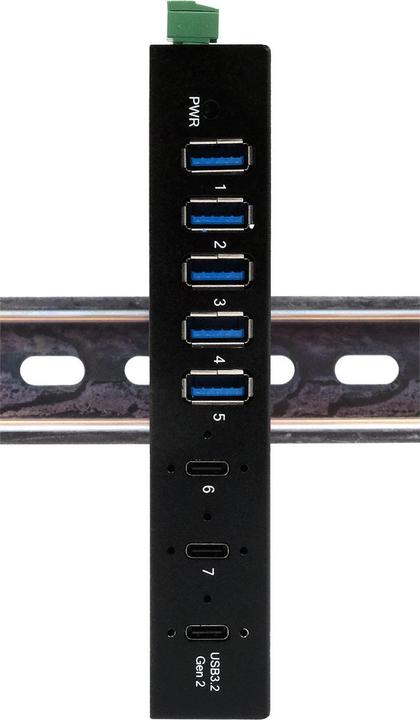

Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status

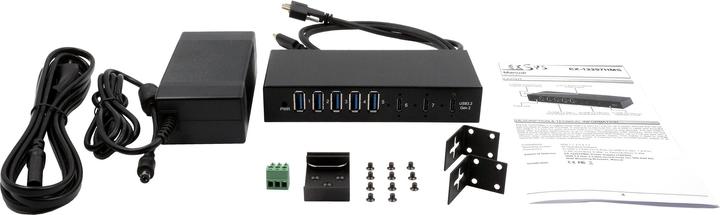

Packaging contents:
EX-12297HMS, Power Supply (12V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall Mounting Brackets, Manual.
