Housing material: Die-cast aluminum
External dimensions: 120 x 80 x 59 mm
External length: 120.5 mm
External width: 80 mm
External height: 59 mm
IP protection class: IP54
Cover color: Unpainted
Series: 1590
Number of knockouts: 0
Shielded: Yes

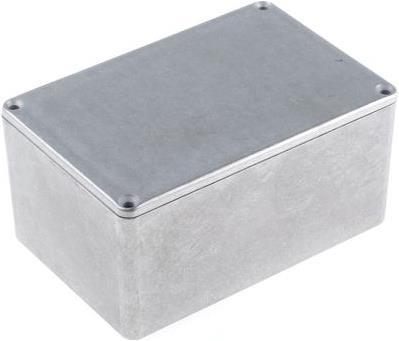

The dimensions do not include the cover (add 4 mm for the cover). IP54 die-cast housing. The Hammond 1590 series is a robust die-cast aluminum enclosure suitable for electronic instruments while being easy to work with. It features an overlapping construction that provides IP54 protection against dust and splashes, as well as improved EMI/RFI shielding. The enclosure, also known as a stomp box, is available in rectangular, trapezoidal, or octagonal shapes.

Features and benefits:

• Durable die-cast aluminum alloy, tough yet easy to work with
• Overlapping joint construction provides IP54 protection against dust and splashes and ensures improved EMI/RF shielding
• Vibra-coating for a smooth surface without sharp edges
• Four or six (depending on the enclosure size) stainless steel machine screws 6-32 x 1/2 inch secure the cover in the threaded holes
• Low angle of the side wall (max. 2°) for easy PCB mounting

Frequently asked questions:
What does IP protection class mean?
The IP protection class is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture.

What is included in the package?
Enclosure with cover. Color-matched screws.
