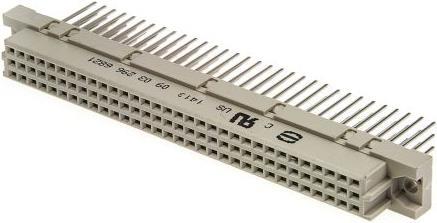

Harting 96 way 3 row DIN41612 socket,13mm

Ratings
Currently out of stock

Product details

Number of contacts: 96
Gender: Female
Number of rows: 3
Housing orientation: Straight
Connection type: Wire Wrap
Row configuration: a/b/c
Type: C
Pitch: 2.54 mm
Mounting type: Through-hole
Class: C2
Rated current: 2 A

Backplane signal connectors Harting DIN 41612 Type C. The Harting DIN 41612 Type C backplane signal connectors are designed for printed circuit board connections. These wear-resistant and durable backplane signal connectors for PCB mounting of Type C, with a high mating cycle count according to DIN 41612, provide a cost-effective solution for many electronic applications. Connections at positions a1 and a31 are made first. Order numbers are rail-approved with a rail classification of NFF 16-101, smoke index: F1, flammability class: I2. Operating temperature: -55 °C to +125 °C, test voltage: 1 kV, contact resistance up to 20 mΩ, thermoplastic resin with glass fiber reinforcement, copper-alloy contacts. Available with 4.5 mm connectors and 13 mm connectors.

Key specifications

Cable + connector type
Various
Item number
10967802

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09032966821
Release date
12.4.2019

Colour

Colour
Beige

Material

Material group
Plastic
Material
Glass fibre reinforced, Thermoplastic moulding material, UL 94 VO

Cable + Connector Features

Cable + connector type
Various
Max. temperature
125 °C
Min. temperature
-55 °C
Connectors Design
Flat

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
C 96-pin DIN 41612, Female connector, Type=09 03 296 6821

Product dimensions

Length
9.50 cm
Width
2.70 cm
Height
1.10 cm
Weight
20.90 g
