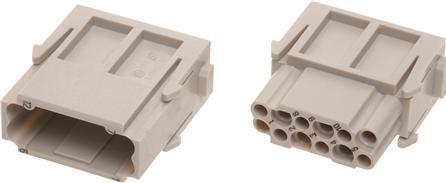

Harting HAN DD Module 6B, 10B, 16B, 24Bfor 12 crimp sleevesmax 2,5mm2, socket part - (2 pcs.)

Price in EUR including VAT, plus shipping
Ratings
Delivered between Mon, 23.6. and Wed, 25.6.
More than 10 items in stock at supplier

Product details

Harting contact insert crimp 09140123101
Manufacturer: Harting
Designation: Contact insert crimp
Type: 09140123101
Number of power contacts: 12
Contact insert without contacts: Yes
Contact design: Socket
Number of poles: 12
Material of the connector insert: Thermoplastic
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Electrical connection type: Crimp connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material according to UL 94: V0
With protective conductor: No
Minimum number of mating cycles: 500
Harting number of mating cycles: 500

Further details: Han DD module, single module, crimp connection, socket, contacts: 12, conductor cross-section: 0.14 to 2.5 mm², rated current: 10 A, polycarbonate (PC), RAL 7032 (pebble grey).

Key specifications

Cable + connector type
Various
Item number
32503671

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09140123101
Release date
23.1.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09140123101
Connectors Design
Flange bushing
Number of cores
12 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
14...2, 5 mm², Bush, Conductor cross-section: 0, Contacts: 12, Crimp connection, Han DD module, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Single module

14-day cancellation right
30-day right of return
24 Months statutory warranty
