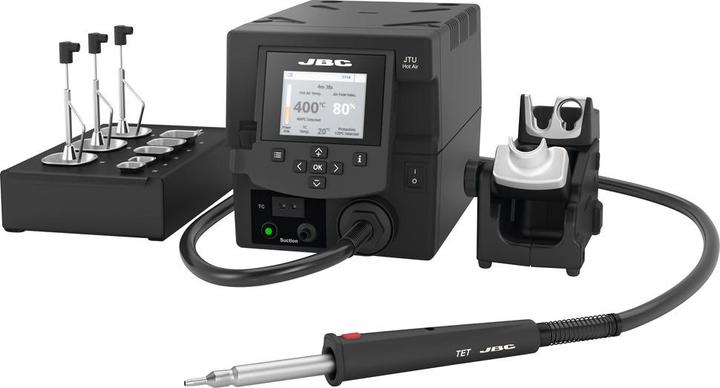

The TESE hot air station repair station is designed for the quick and safe repair of small to medium SMDs. Up to 25 parameters can be individually saved via the menu, including the activation of the tool through the button or the foot pedal (available as an option). Software updates can be installed via the USB port.

Features:

• Hot air pump with electronic control of temperature and air flow
• Suction pump for easy fixation of ICs
• Fast and safe desoldering
• Up to 25 solder profiles and working durations programmable
• Thermoelement controls the temperature on the circuit board
• Automatic temperature shutdown when the hot air pencil is in the stand

Delivery includes:
1 piece control unit JTU
1 piece stand TES
1 piece hot air pencil TET
1 piece desoldering stand with funnel and holder (only 810391)
1 piece thermoelement type K PH218
1 piece power plug
1 piece user manual

Selection criteria:
Version: 2B, with desoldering stand and accessories

Technical data:
Power: 300 W
Temperature range: 150-450 °C
Dimensions L x W x H: 184 x 148 x 140 mm
Max. flow rate: 2-17 SLPM
Vacuum: 30% / 228 mmHg
USB interface: yes
Weight: 4.722 kg

Article number: JBC-TESE-2B
Shop number: 810389.
