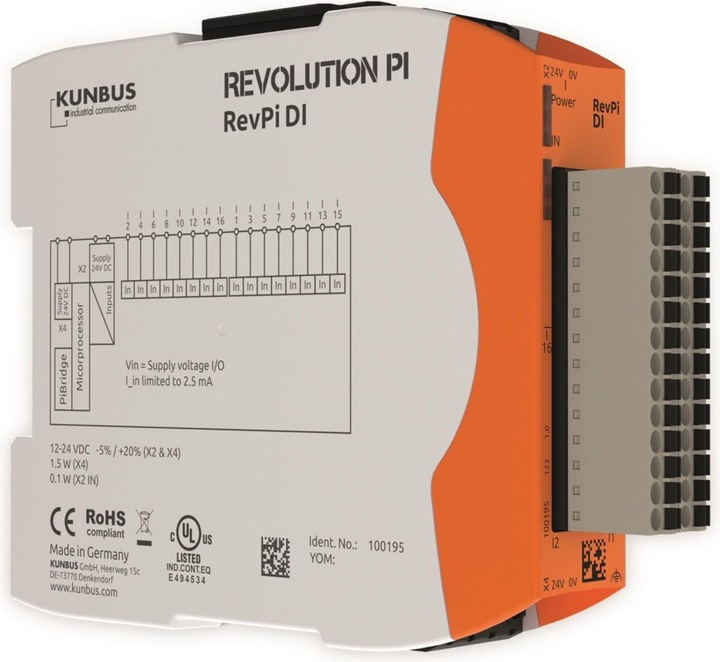

KUNBUS RevPi DI PR100195

Manufacturer: KUNBUS
Designation: RevPi DI
Type: PR100195
Supply voltage (DC): 11.4 - 28.8 V
Type of supply voltage: DC
Number of digital inputs: 16
Input current at signal 1: 2.4 mA
Permissible voltage at input: -45 - 45 V
Type of input voltage: DC
Type of output voltage: DC
Short circuit protection for outputs: yes
Redundancy capability: no
Type of electrical connection: Spring terminal connection
Delay time for signal change: 0.025 - 3 ms
Suitable for safety functions: no
Associated operating equipment (Ex ia): no
Associated operating equipment (Ex ib): no
Explosion protection category for gas: none
Explosion protection category for dust: none
Width: 22.5 mm
Height: 96 mm
Depth: 110.5 mm

KUNBUS RevPi DI PR100195: additional details

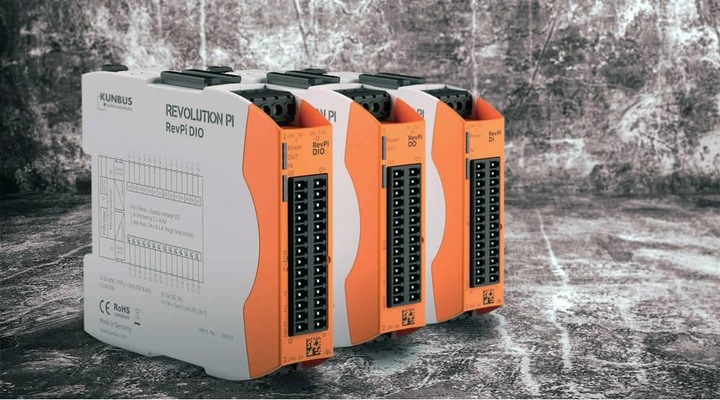

This digital input module expands the RevPi base module with 16 digital inputs, thereby creating the foundation for an industrial small control system. The expansion module is connected to the base module via the upper connector. Dimensions: 96 x 22.5 x 110.5 mm.
