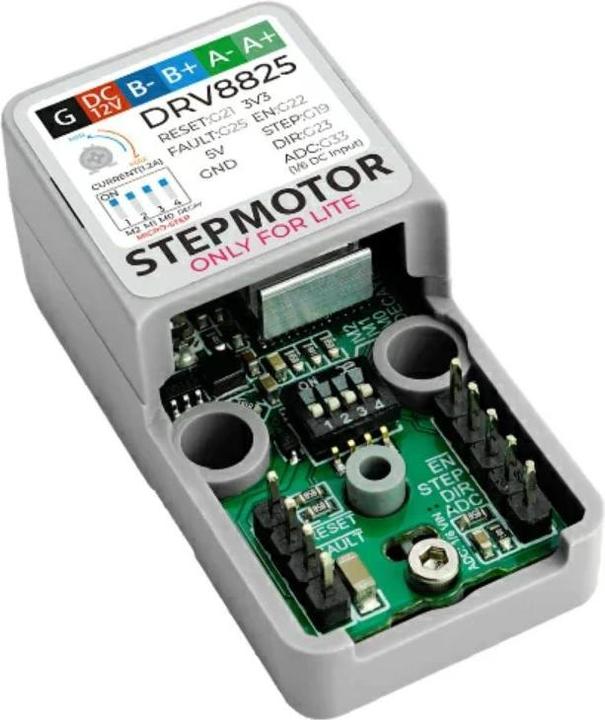

Experience the next level of stepper motor control with the M5Stack ATOMIC Stepper Motor Base, ideal for anyone who already owns an ATOM series controller. This base is equipped with the powerful DRV8825 driver chip, capable of driving stepper motors with up to 1.2 A. With the adjustable DIP switch, you can precisely tailor the motor movement to your needs, allowing you to configure the precision and control experience as desired. The integrated DC-DC circuit enables safe and stable operation of the base via an external power supply. This makes it perfect for a variety of applications, from 3D printers to CNC machines, robots, and camera gimbals.

Recommended Accessories:

• Stepper motor
• M5Stack ATOM Lite ESP32 Development Kit
• M5Stack AtomS3 Lite
• M5Stack AtomS3 Dev Kit with 0.85 inch color display

Features:

• Equipped with DRV8825 driver chip for high-performance motor control.
• Supports up to 1/32 microsteps for finely tuned motor movements.
• Allows motor current up to 1.2 A.

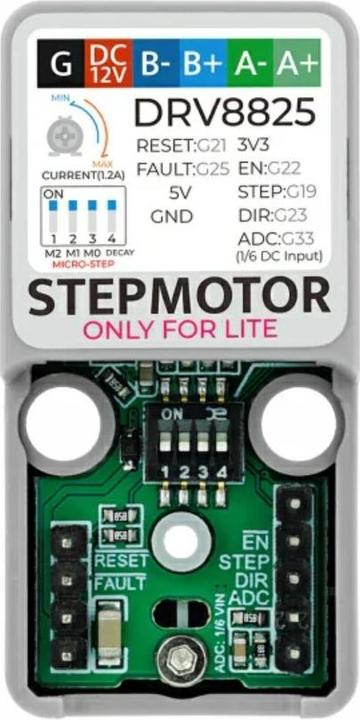

• Features a DIP switch for easy motor subdivision adjustment.
• Integrated DC-DC circuit for stable power supply from external power sources.
• Compatible with ATOM Lite, ATOM S3, and ATOM S3 Lite hosts.

Application Examples:

• Controlling a stepper motor in a custom 3D printer.
• Use in CNC machines for precise manufacturing processes.
• Integration into robotics projects for motion control.
• Application in automated assembly lines for product manipulation.
• Use in camera gimbals for stabilization and positioning.

Technical Specifications:

• Manufacturer: M5Stack
• Manufacturer SKU: A132
• Microsteps: Up to 1/32 steps.
• Output current: 1.2 A fully scalable.
• Supply voltage: 9-18 V.

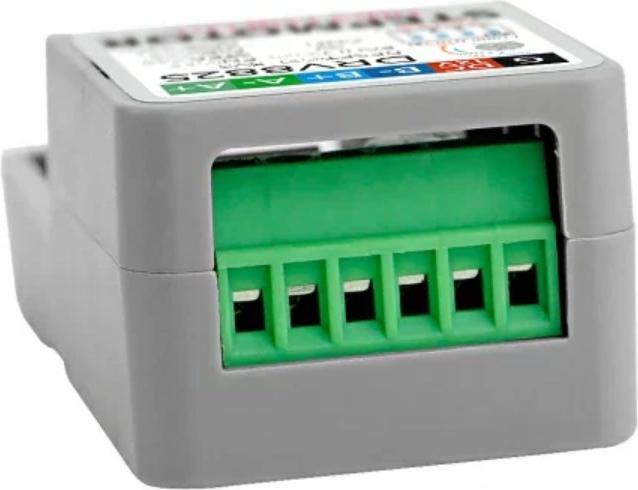

• External connection: KF128L 2.54 6P.
• Housing material: Plastic (PC).
• Dimensions: 48 x 24 x 18 mm
• Weight: 13.5 g

Delivery Contents:
1x M5Stack ATOMIC Stepper Motor Base.
